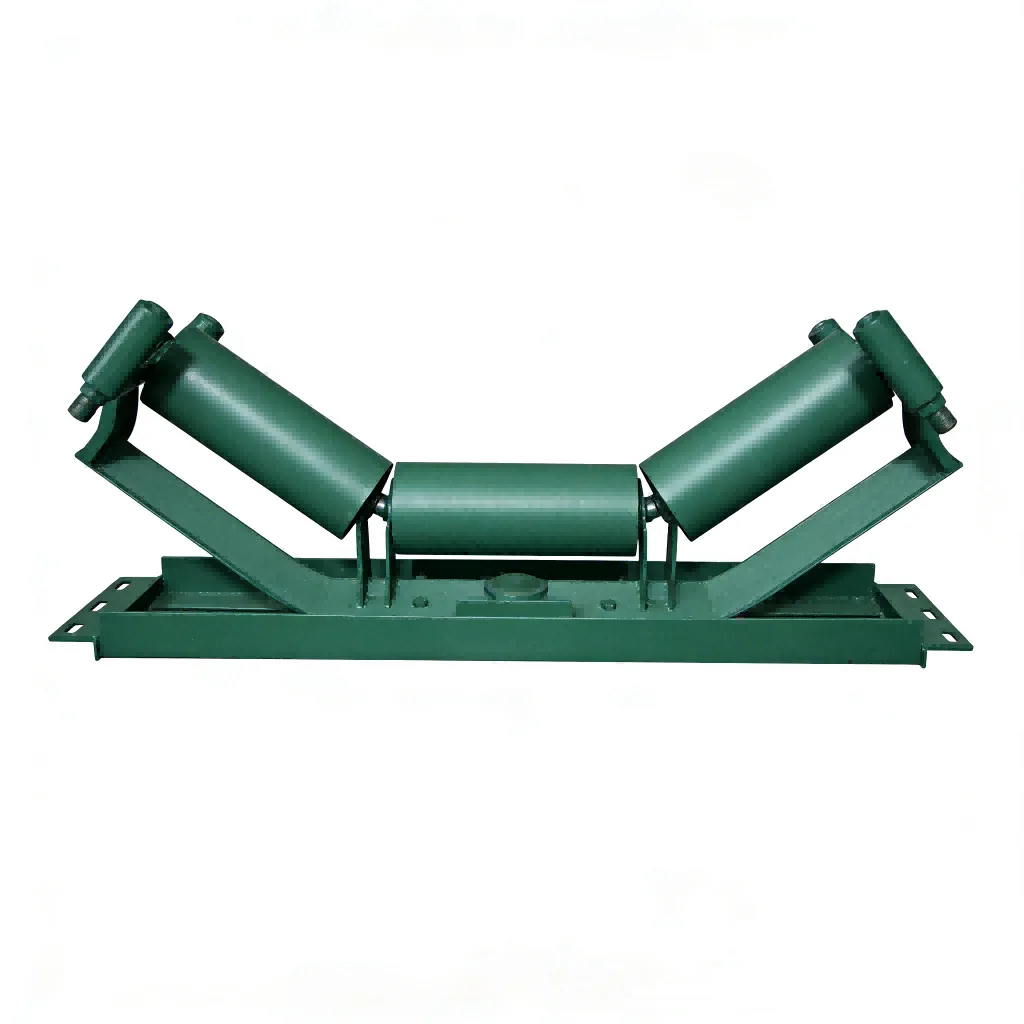

Carrying idler, impact idler, self-aligning idler, spiral idler. Wear-resistant sealed design, long service life.
Size: Φ89/Φ108/Φ133mm | Length: 250-1800mm | Material: Carbon steel / Stainless steel

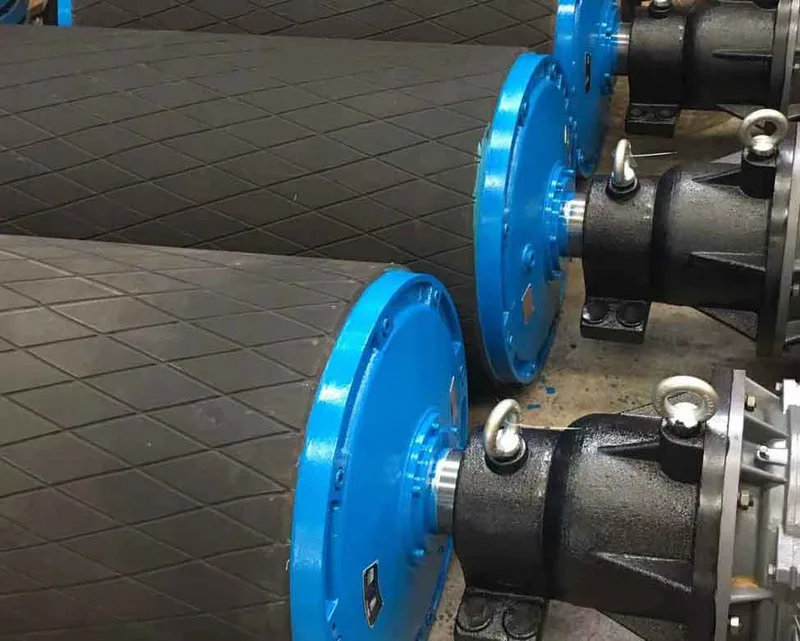

Drive pulley, bend pulley, motorized pulley. Rubber lagging/plain surface optional. Static and dynamic balancing tested.
Diameter: Φ200-Φ1400mm | Face width: 500-2000mm | Lagging: Ceramic / Rubber
EP conveyor belt, NN conveyor belt, steel cord conveyor belt. Wear-resistant and tear-resistant.
Width: 500-2400mm | Plies: 2-8 | Thickness: 8-25mm

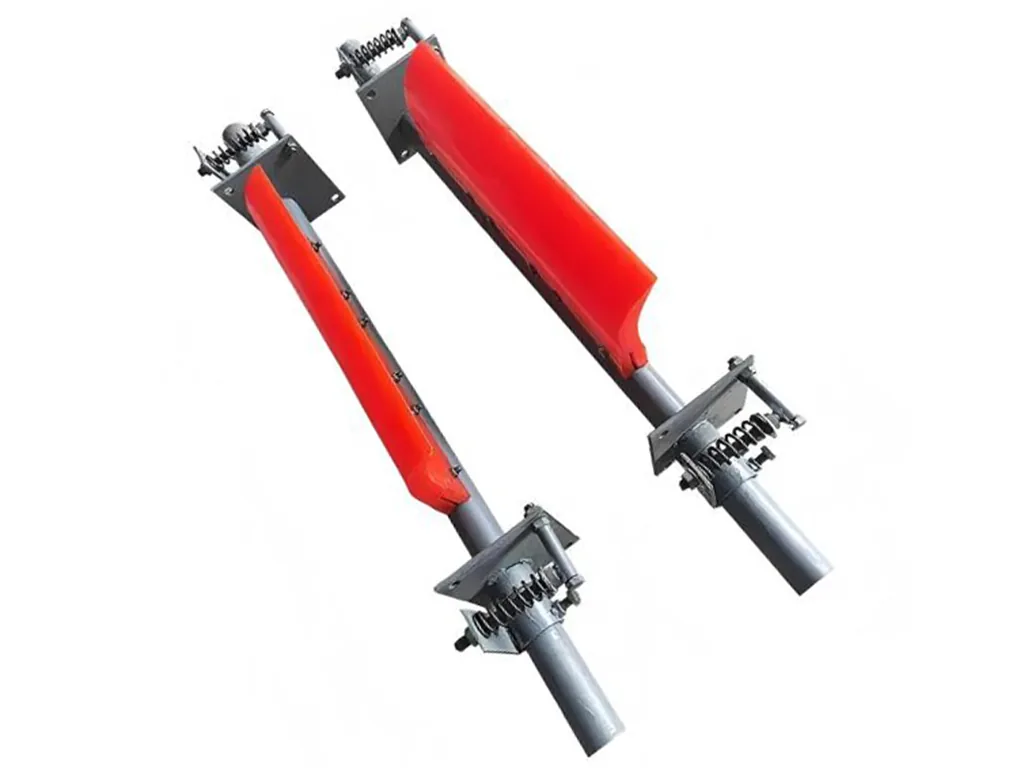

Primary cleaner, secondary cleaner. Polyurethane/alloy blade. Effectively removes sticky material.
Belt width: 500-2000mm | Blade: PU / Alloy / Rubber

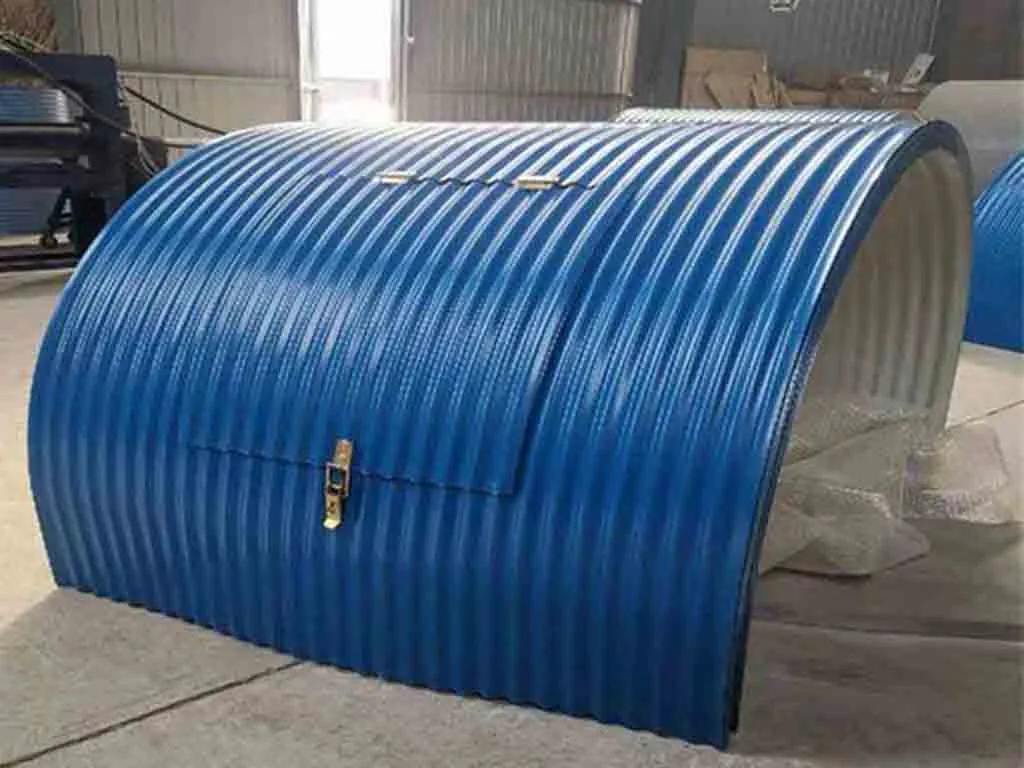

Color-coated steel sheet/galvanized steel rain cover. Protects material and belt from dust and rain.
Material: Painted steel / Galvanized | Color: Blue / White / Red | With clamps

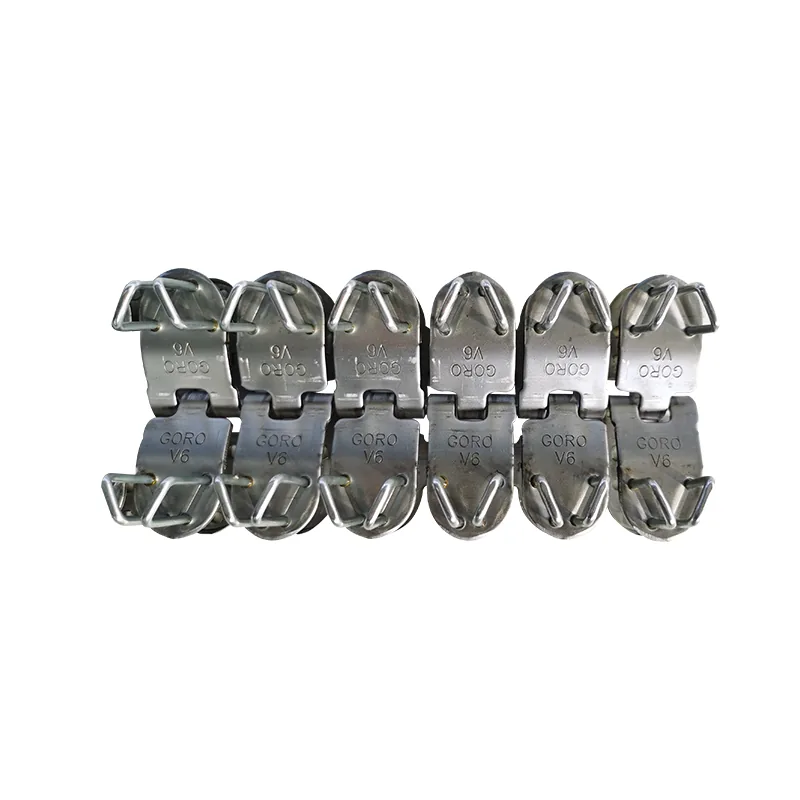

Mechanical belt joint. High-strength alloy material. Easy installation, strong connection.
Belt thickness: 8-20mm | Tensile strength: ≤1600N/mm
| Model | Diameter(mm) | Length(mm) | Wall Thickness(mm) | Bearing Model | Belt Width(mm) |
|---|---|---|---|---|---|
| Φ89 Idler | 89 | 250-950 | 3.0/3.5 | 6204/6205 | 650/800 |
| Φ108 Idler | 108 | 380-1400 | 3.5/4.0 | 6205/6305 | 800/1000 |
| Φ133 Idler | 133 | 465-1800 | 4.0/4.5 | 6305/6306 | 1000/1200 |
| Φ159 Idler | 159 | 530-2200 | 4.5/5.0 | 6306/6307 | 1200/1400 |
