HC Series C-Type Jaw Crusher is a new-generation primary crushing equipment supplied by our company, incorporating advanced international technology. It adopts C-type cavity structure design with high crushing efficiency, stable operation and convenient maintenance.
The equipment adopts integral cast steel frame, high-strength bearings, optimized motion trajectory, large crushing ratio and high output, widely used in coarse crushing operations in mining, building materials, highway, water conservancy and other industries.
HC series covers models from HC-80 to HC-150, with processing capacity of 30-650t/h, which can meet the coarse crushing needs of different scale production lines.
Suitable for high-hardness rocks: granite, basalt, diabase, quartzite and river pebble; medium-hardness rocks: limestone, dolomite, sandstone and shale; metal ores: iron ore, copper ore, gold ore, lead-zinc ore and other various metal ores; industrial solid waste: construction waste (concrete blocks, bricks and tiles), slag and furnace slag.

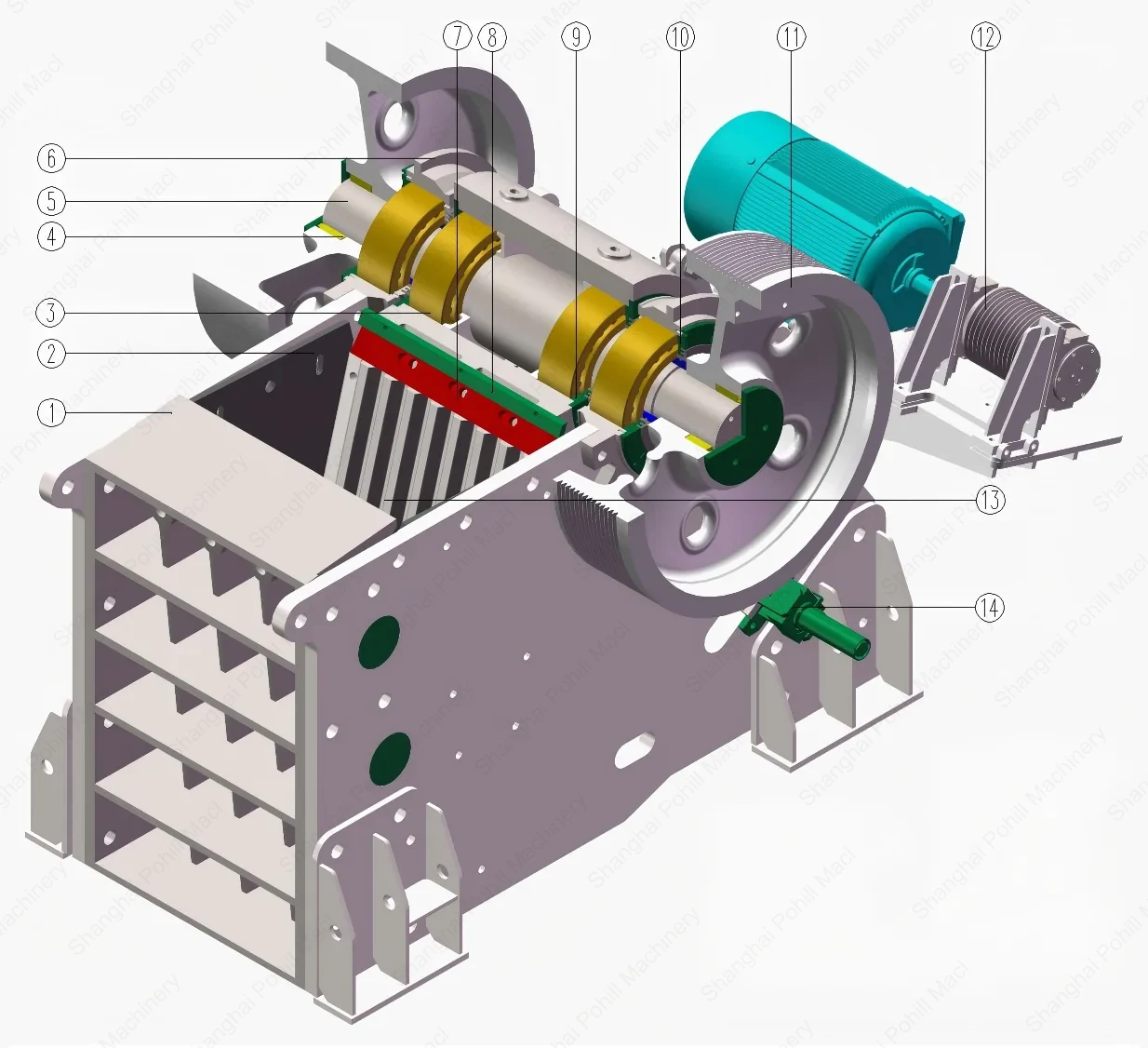

1. Front Wall Assembly 2. Side Guard Plate 3. Bearing 4. Expansion Sleeve 5. Main Shaft 6. Bearing Housing 7. Movable Jaw Wedge 8. Movable Jaw Guard Plate 9. Movable Jaw End Cover 10. Frame Cover 11. V-Belt Pulley 12. Drive Assembly 13. Jaw Plate 14. Adjustment Mechanism
Large feed material enters the crushing chamber through the feed opening and is compressed between the fixed jaw plate and the moving jaw plate. The optimized motion of the moving jaw ensures thorough crushing and a controlled discharge size.
The heavy-duty cast steel frame, high-strength bearing system and adjustable discharge setting make the HC Series suitable for demanding mining, quarry and aggregate applications.
Primary crushing of limestone, granite, basalt and other quarry materials
Primary crushing of iron ore, copper ore, gold ore and other mineral ores
Aggregate production for roads, bridges and infrastructure projects
Crushing of concrete blocks, bricks, slag and other industrial materials
* Contact sales for more high-res images
| Model | Feed Opening(mm) | Max Feed(mm) | Discharge Range(mm) | Capacity(t/h) | Motor Power(kw) | Weight(t) |
|---|---|---|---|---|---|---|
| HC-80 | 800×500 | 420 | 50-120 | 45-90 | 55 | 12.5 |
| HC-96 | 960×600 | 500 | 60-150 | 70-140 | 75 | 18.5 |
| HC-106 | 1060×700 | 590 | 70-180 | 100-200 | 90 | 24.5 |
| HC-110 | 1100×760 | 650 | 80-200 | 130-260 | 110 | 29.8 |
| HC-116 | 1160×860 | 730 | 90-220 | 180-340 | 132 | 36.5 |
| HC-125 | 1250×950 | 800 | 100-250 | 240-420 | 160 | 46.0 |
| HC-140 | 1400×1100 | 920 | 110-280 | 320-520 | 200 | 59.0 |
| HC-145 | 1450×1150 | 960 | 120-280 | 350-580 | 220 | 65.0 |
| HC-150 | 1500×1200 | 1000 | 120-290 | 380-650 | 220 | 68.0 |
Integral cast steel structure, high strength, impact resistance, suitable for harsh working conditions
Longer crushing stroke, large crushing ratio, significant output increase
Hydraulic/mechanical adjustment, simple operation, precise particle size control
Toggle plate safety protection, prevents stalling and damage to the main machine, low failure rate
The HC jaw crusher handles granite, basalt, diabase, quartzite, river pebble, limestone, dolomite, sandstone and shale, as well as metallic ores such as iron ore, copper ore, gold ore and lead-zinc ore. It also crushes concrete blocks, bricks, slag and other construction and industrial waste.
The HC-80 to HC-150 models offer capacities from 45 to 650 t/h, covering primary crushing requirements for production lines of different scales.
Compare your required capacity, maximum feed size and desired discharge range with the technical specifications, then contact our engineering team for a model recommendation.
Yes. As primary crushing equipment, the HC Series can be combined with feeders, screens and cone crushers to build a complete plant. Contact us to match the full line to your capacity.
