PE series jaw crusher is a high-efficiency crushing equipment supplied by our company, mainly used for coarse and medium crushing of ores, rocks, construction waste and other materials. Widely used in mining, building materials, highway, railway, water conservancy and other industries.
The equipment adopts the movable jaw swing extrusion principle, with large crushing ratio, high output and stable operation. It is the core equipment in crushing production lines and can meet the crushing needs of different scale production lines.
This machine has compact structure, simple operation and maintenance, long service life of wear parts, greatly reducing the user's operating cost. It is the preferred crushing equipment in the industry.

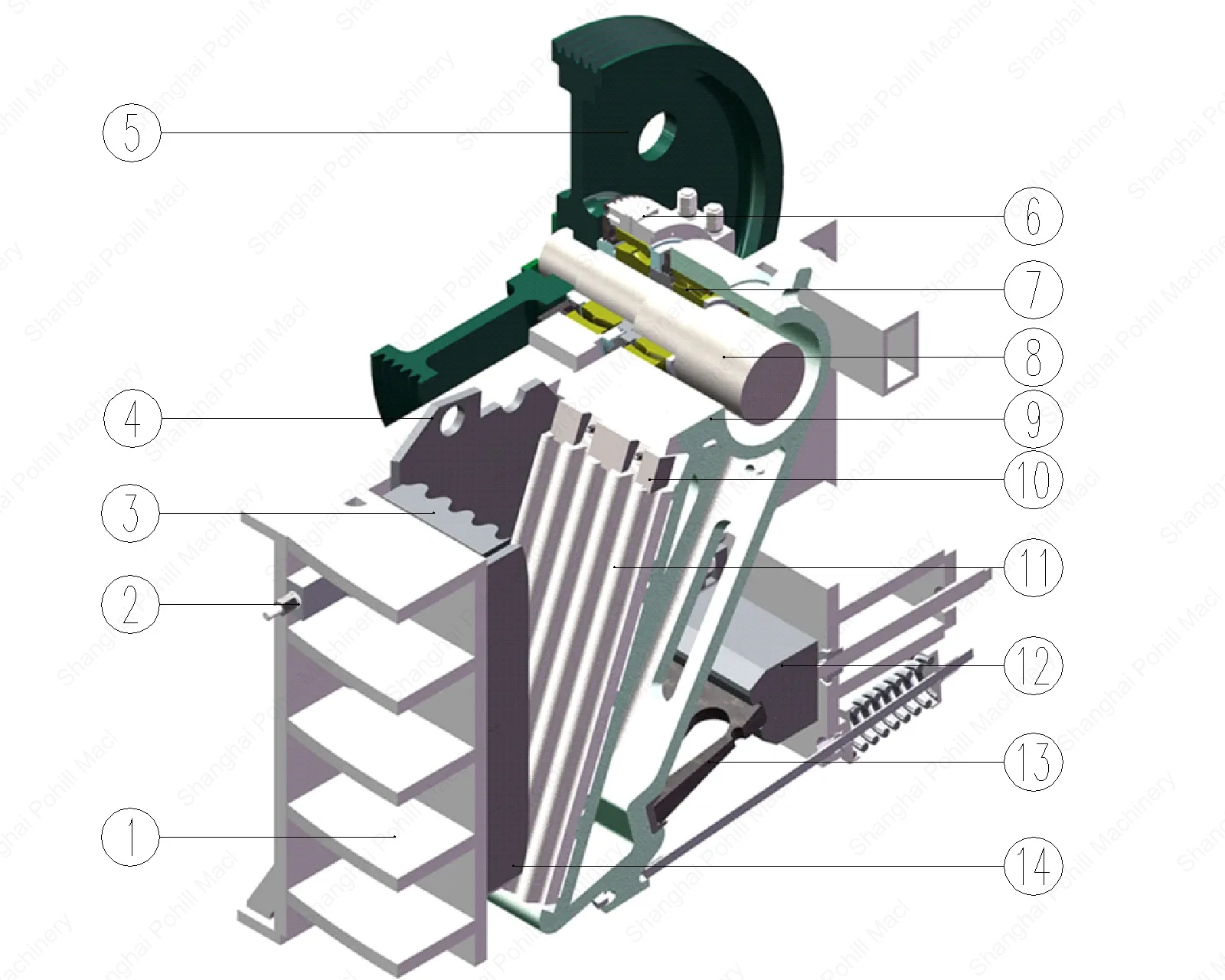

1. Front Wall Assembly 2. Side Guard Plate 3. Bearing 4. Expansion Sleeve 5. Main Shaft 6. Bearing Housing 7. Movable Jaw Wedge 8. Movable Jaw Guard Plate 9. Movable Jaw End Cover 10. Frame Cover 11. V-Belt Pulley 12. Drive Assembly 13. Jaw Plate 14. Adjustment Mechanism
The motor drives the eccentric shaft through the belt pulley, making the movable jaw swing back and forth periodically around the suspension shaft. Material is repeatedly compressed and split between the fixed jaw plate and the movable jaw plate, and particles meeting the size requirement are discharged from the discharge opening.
The PE series uses the moving-jaw swing compression principle with a large crushing ratio, high output and stable operation, making it the core equipment for primary and secondary crushing in various crushing lines.
Primary and secondary crushing of iron ore, copper ore and other metal ores
Aggregate production from granite, basalt, limestone and other rocks
Crushing and recycling of concrete blocks, bricks and construction waste
Aggregate processing for highways, railways, bridges and infrastructure
* Contact sales for more high-res images
| Model | Feed Opening(mm) | Max Feed(mm) | Discharge Range(mm) | Capacity(t/h) | Motor Power(kw) | Weight(kg) |
|---|---|---|---|---|---|---|
| PE400×600 | 400×600 | 340 | 40-100 | 15-65 | 30 | 7000 |
| PE500×750 | 500×750 | 425 | 50-100 | 40-110 | 55 | 12500 |
| PE600×900 | 600×900 | 500 | 65-160 | 60-180 | 75 | 19000 |
| PE750×1060 | 750×1060 | 630 | 80-140 | 90-230 | 110 | 31000 |
| PE900×1200 | 900×1200 | 750 | 95-165 | 180-350 | 132 | 60000 |
| PE1000×1200 | 1000×1200 | 850 | 100-180 | 250-400 | 160 | 70000 |
| PE1200×1500 | 1200×1500 | 1020 | 150-230 | 400-800 | 220 | 110000 |
| PE1300×1600 | 1300×1600 | 1100 | 160-260 | 500-1000 | 280 | 140000 |
| PE150×250 | 150×250 | 125 | 10-40 | 1-5 | 5.5 | 800 |
| PE250×400 | 250×400 | 210 | 20-60 | 5-23 | 18.5 | 3000 |
| PEX250×750 | 250×750 | 210 | 10-30 | 10-25 | 22 | 4200 |
| PEX250×1000 | 250×1000 | 210 | 10-25 | 15-35 | 30 | 7800 |
| PEX250×1200 | 250×1200 | 210 | 10-25 | 20-45 | 37 | 9200 |
| PEX300×1300 | 300×1300 | 250 | 12-30 | 30-60 | 45 | 12000 |
Optimized cavity design, longer crushing stroke, crushing ratio up to 10-15, output increased by 15%-30% under the same power.
Wear parts such as jaw plates and liners are made of high manganese steel and alloy materials, impact-resistant and wear-resistant, service life extended by more than 50%.
Integral cast steel/thickened welded frame, high-strength bearings, can withstand huge crushing force, long-term operation without failure.
Hydraulic/mechanical adjustment device, one-key adjustment of discharge particle size, wide adjustment range to meet different production needs.
Optimized transmission structure, low running resistance, energy consumption reduced by 10%-20%, simple maintenance, low comprehensive use cost.
Can crush granite, basalt, limestone, construction waste, ores and many other materials, suitable for crushing scenarios in various industries.
The PE series is a classic jaw crusher structure with excellent economy; the HC series adopts an optimized C-type cavity design with higher crushing efficiency for demanding primary crushing. Choose by capacity and budget.
The PE series offers a large crushing ratio, typically 4-6, producing finer products in one pass and reducing the number of downstream crushing stages.
Yes. The discharge size is adjusted by changing the discharge opening width, which is simple to operate and meets different production requirements.
It suits primary and secondary crushing of ores, rocks and construction waste, widely used in mining, building materials and highway industries.
