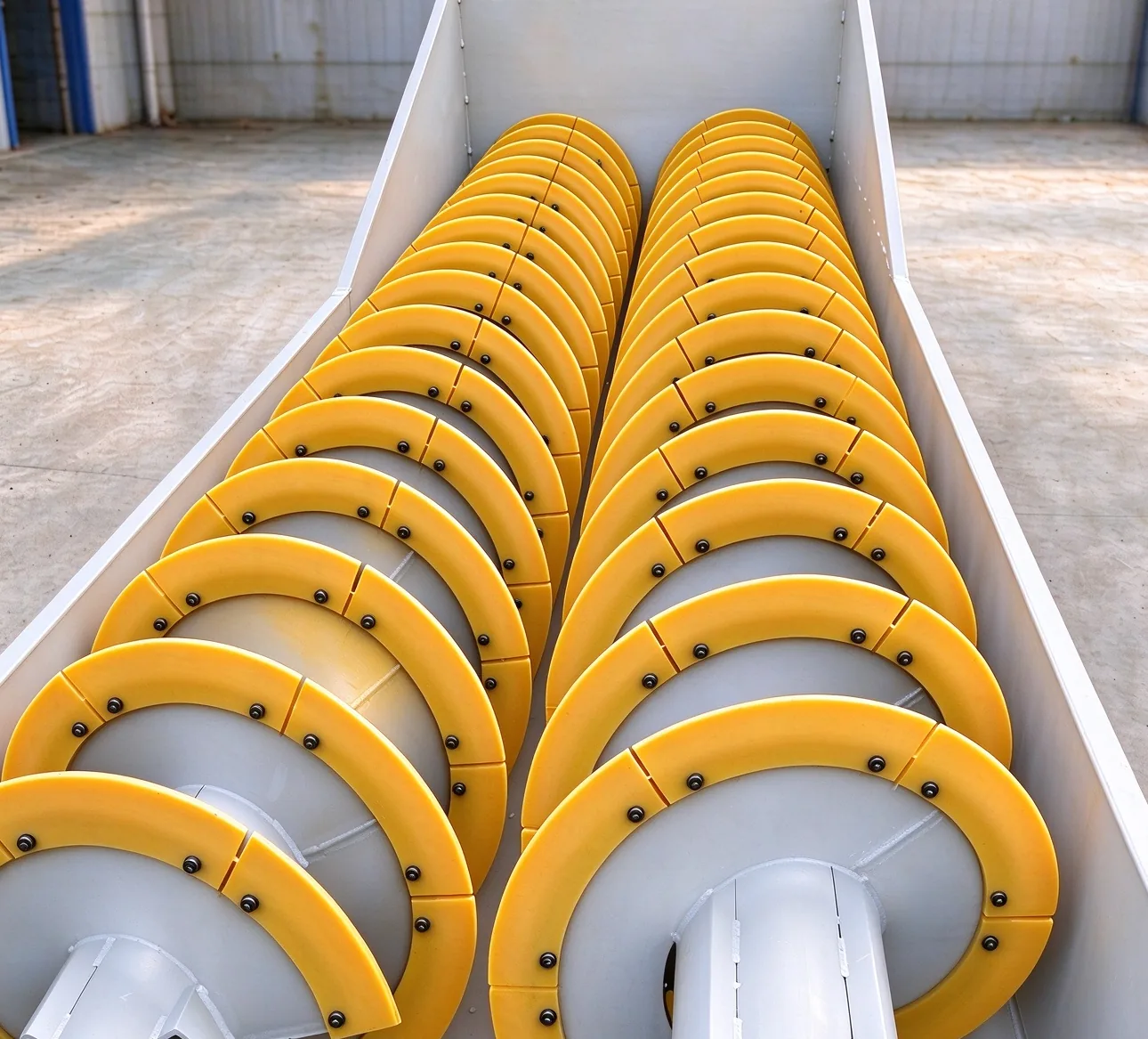

LSX series spiral sand washer is a high-efficiency sand washing equipment with a 15° inclined tank design. The screw head is submerged in a sedimentation tank formed by three weirs, and driven by a motor to rotate continuously. Fresh water enters through the microporous plate at the bottom of the sedimentation tank.
The equipment has three functions: washing, dewatering, and classification. It features reasonable structure, convenient maintenance, large processing capacity, low power consumption, and high cleaning degree. The new sealing structure and fully enclosed oil bath transmission device ensure reliable operation.
LSX series covers both single and double screw configurations, with processing capacity up to 350 t/h, widely used in artificial sand manufacturing, power line poles, construction site concrete dams, sand classification and dewatering industries.
The spiral sand washer uses the rotating stirring of the spiral blades to make sand tumble and collide thoroughly in water. Clay and impurities on the sand surface are separated and discharged with the water flow from the overflow outlet, while the cleaned sand is pushed upward and discharged by the spiral blades.
With a simple structure, large capacity and high cleaning degree, it combines washing, dewatering and classification in one unit, making it the core equipment of aggregate lines and water-washed manufactured sand.
Cleaning and desliming in manufactured sand lines
Washing and processing of aggregates
Cleaning of glass raw materials and building sand
Sand washing of tailings and middlings in processing plants
| Model | Screw Qty | Screw Dia (mm) | Tank Length (mm) | Capacity (t/h) | Speed (r/min) | Power (kW) | Water Consumption (t/h) | Weight (t) |
|---|---|---|---|---|---|---|---|---|
| LSX610 | 1 | 610 | 7225 | 40-50 | 32 | 7.5 | 6-63 | 3.09 |
| LSX762 | 1 | 762 | 7620 | 50-75 | 26 | 11 | 9-63 | 5.23 |
| LSX920 | 1 | 920 | 7585 | 100 | 21 | 11 | 10-80 | 6.2 |
| 2LSX920 | 2 | 920 | 7585 | 200 | 21 | 11×2 | 20-160 | 11.5 |
| LSX1120 | 1 | 1120 | 9750 | 175 | 17 | 18.5 | 20-150 | 10.9 |
| 2LSX1120 | 2 | 1120 | 9750 | 350 | 17 | 18.5×2 | 40-300 | 17.8 |
Note: Parameters are for reference only. Customized models available according to actual needs.
Single or double screw design with large tank volume, processing capacity up to 350 t/h, suitable for large-scale production.
The spiral blades continuously stir and flip the sand, ensuring effective removal of impurities and high cleaning degree.
Reasonable structure design with low power consumption, low operating cost, and long service life.
New sealing structure and fully enclosed oil bath transmission device ensure reliable operation and easy maintenance.
It combines washing, dewatering and classification in one unit with a high cleaning degree.
The spiral type offers higher cleaning degree and capacity, suitable for high-clay raw materials; the wheel type is compact with lower water consumption, suitable for small and medium lines.
Fine sand loss is controlled by adjusting the overflow outlet and rotation speed, and can be further reduced with a fine sand recovery unit.
Wear parts such as spiral blades use wear-resistant materials and are easy to replace with low maintenance cost.
