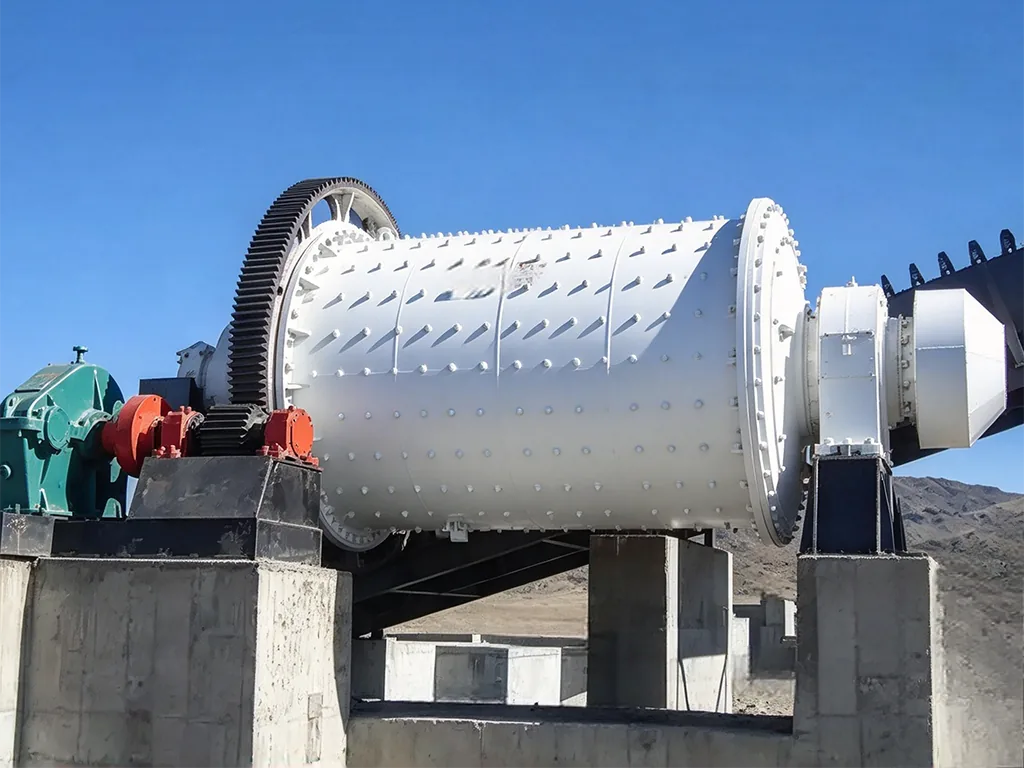

The ball mill is one of our core products, an efficient grinding equipment mainly composed of cylinder, end cover, bearing, transmission device and other parts. This series of ball mills adopt advanced design concepts and processing technology, with stable operation, low energy consumption, high grinding efficiency, simple operation and maintenance and other characteristics. It is suitable for grinding various ores and other materials, and can be widely used in mineral processing, building materials, chemical and other industries. According to different discharge methods, it can be divided into grid type and overflow type; According to the cylinder shape, it can be divided into short cylinder ball mill, long cylinder ball mill, tube mill and conical mill.
Grinding of metal and non-metal ores
Grinding of cement clinker and building material feed
Grinding of chemical raw materials
Grinding of ceramic and glass raw materials
When the ball mill is working, the motor drives the cylinder to rotate through the reduction device. The grinding medium (steel balls, steel segments, etc.) in the cylinder is lifted to a certain height under the action of centrifugal force and friction, and then falls in a falling or cascading state. Materials enter the first chamber of the mill uniformly through the feeding hollow shaft screw of the feeding device. The chamber is equipped with step liners or corrugated liners and steel balls of different specifications. The rotation of the cylinder generates centrifugal force to lift the steel balls to a certain height and then fall, producing heavy impact and grinding effect on the materials. After the materials are roughly ground in the first chamber, they enter the second chamber through the single-layer partition board. The chamber is inlaid with flat liners and steel balls to further grind the materials. The ground materials are discharged through the discharge grate plate to complete the grinding operation.
1. Shell 2. Liners 3. Grinding media (steel balls) 4. Hollow shaft 5. Main bearing 6. Girth gear 7. Pinion 8. Feed device 9. Discharge device 10. Drive unit
Reasonable structure and stable operation: Made of high-quality steel, the overall structure is compact, with low failure rate and long service life.
High grinding efficiency: Optimized chamber design and grinding medium ratio effectively improve grinding efficiency and reduce unit energy consumption.
Simple operation and maintenance: Humanized design, easy for daily operation, inspection and maintenance, reducing labor costs.
Strong adaptability: The grinding medium and operating parameters can be flexibly adjusted according to different material characteristics and fineness requirements.
Energy saving and environmental protection: Adopt advanced sealing structure, no dust leakage, low noise, meeting environmental protection requirements.
Customized service: Different specifications and configurations of ball mill equipment can be customized according to customers' actual production needs.
| Specification Model | Cylinder Speed(r/min) | Ball Loading(t) | Feed Size(mm) | Discharge Size(mm) | Capacity(t/h) | Motor Power(kw) | Total Weight(t) |
|---|---|---|---|---|---|---|---|
| Φ900×1800 | 36-38 | 1.5 | <20 | 0.075-0.89 | 0.65-2 | 18.5 | 5.85 |
| Φ900×3000 | 36 | 2.7 | <20 | 0.075-0.89 | 1.1-3.5 | 22 | 6.98 |
| Φ1200×2400 | 36 | 3 | <25 | 0.075-0.6 | 1.5-4.8 | 30 | 13.6 |
| Φ1200×3000 | 36 | 3.5 | <25 | 0.074-0.4 | 1.6-5 | 37 | 14.3 |
| Φ1200×4500 | 32.4 | 5 | <25 | 0.074-0.4 | 1.6-5.8 | 55 | 15.6 |
| Φ1500×3000 | 29.7 | 7.5 | <25 | 0.074-0.4 | 2-5 | 75 | 19.5 |
| Φ1500×4500 | 27 | 11 | <25 | 0.074-0.4 | 3-6 | 110 | 22 |
| Φ1500×5700 | 28 | 12 | <25 | 0.074-0.4 | 3.5-6 | 130 | 25.8 |
| Φ1830×3000 | 25.4 | 11 | <25 | 0.074-0.4 | 4-10 | 130 | 34.5 |
| Φ1830×4500 | 25.4 | 15 | <25 | 0.074-0.4 | 4.5-12 | 155 | 38 |
| Φ1830×6400 | 24.1 | 21 | <25 | 0.074-0.4 | 6.5-15 | 210 | 43 |
| Φ1830×7000 | 24.1 | 23 | <25 | 0.074-0.4 | 7.5-17 | 245 | 43.8 |
| Φ2100×3000 | 23.7 | 15 | <25 | 0.074-0.4 | 6.5-36 | 155 | 45 |
| Φ2100×4500 | 23.7 | 24 | <25 | 0.074-0.4 | 8-43 | 245 | 56 |
| Φ2100×7000 | 23.7 | 26 | <25 | 0.074-0.4 | 12-48 | 280 | 59.5 |
| Φ2200×4500 | 21.5 | 27 | <25 | 0.074-0.4 | 9-45 | 280 | 54.5 |
| Φ2200×6500 | 21.7 | 35 | <25 | 0.074-0.4 | 14-26 | 380 | 61 |
| Φ2200×7000 | 21.7 | 35 | <25 | 0.074-0.4 | 15-28 | 380 | 62.5 |
| Φ2200×7500 | 21.7 | 35 | <25 | 0.074-0.4 | 15-30 | 380 | 64.8 |
| Φ2400×3000 | 21 | 23 | <25 | 0.074-0.4 | 7-50 | 245 | 58 |
| Φ2400×4500 | 21 | 30 | <25 | 0.074-0.4 | 8.5-60 | 320 | 72 |
Note: Parameters are for reference only, customized models available according to actual needs
Select the mill size and grinding media ratio by material hardness, feed size, product fineness and capacity, customizable to working conditions.
The steel ball diameter and gradation are determined by material characteristics and discharge fineness. A reasonable ratio improves grinding efficiency and reduces energy consumption.
Yes. Both dry-type and wet-type ball mills are available, selected by process requirements.
Large-module gear or central transmission provides stable and low-noise operation, with auxiliary drive for convenient maintenance.
