The YA and YK series circular vibrating screens are widely used in mining, aggregate, metallurgy, coal and other industries. The YA series adopts a tubular eccentric shaft exciter, with a robust structure and strong exciting force, suitable for large materials and heavy-duty screening; the YK series adopts a block eccentric exciter, with larger processing capacity and lower noise, suitable for large and medium aggregate production lines.

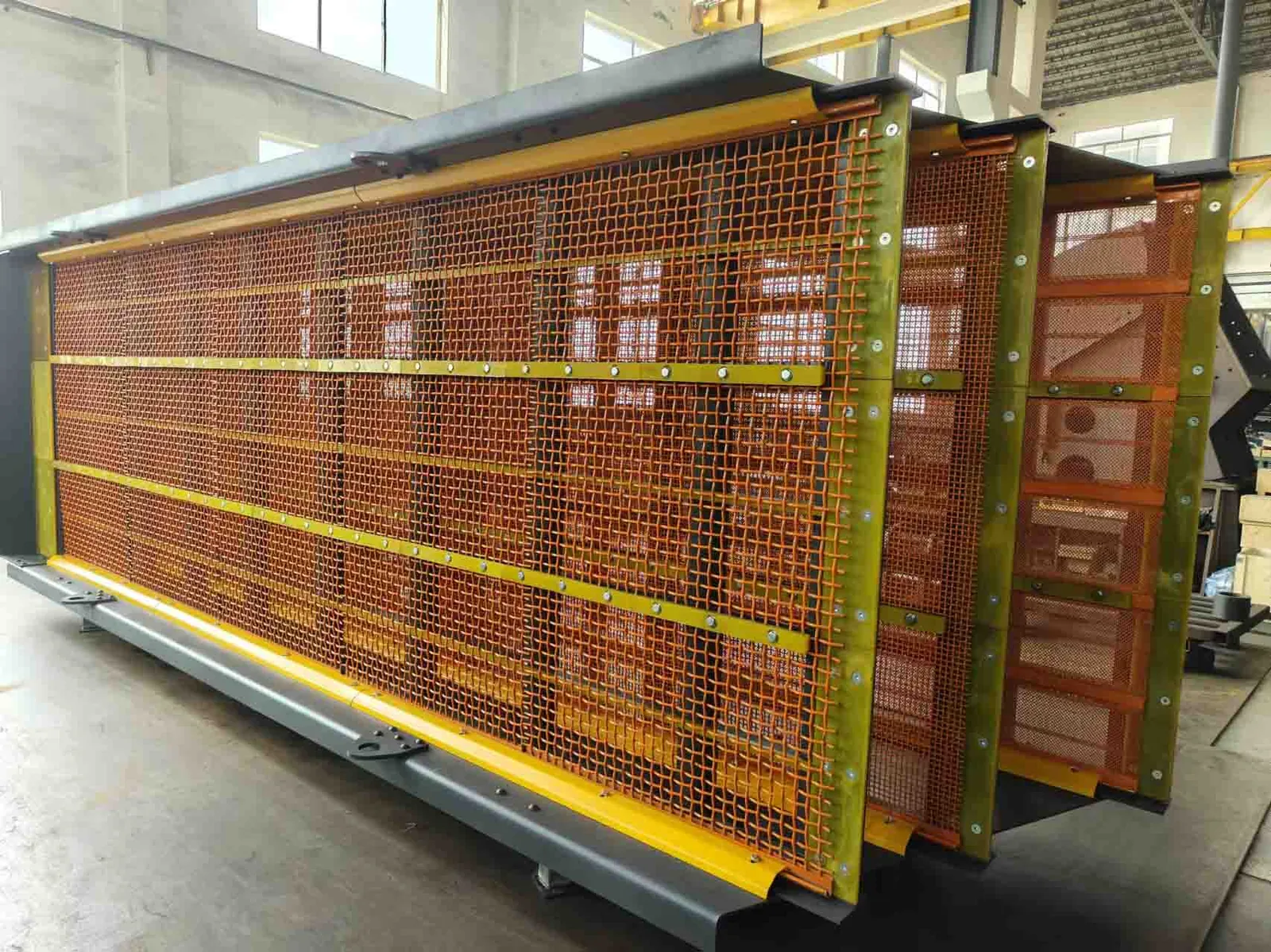

The screen machine uses a spring steel woven mesh or perforated screen plate with a long service life and is not easy to block. It is suitable for screening various materials in quarry, mining, coal, building materials, electric power, and chemical industries.
YA series covers models from 2YA1237 to 4YA2460 with capacity up to 600 t/h; YK series covers models from 2YK1237 to 4YK2460 with capacity up to 810 t/h.

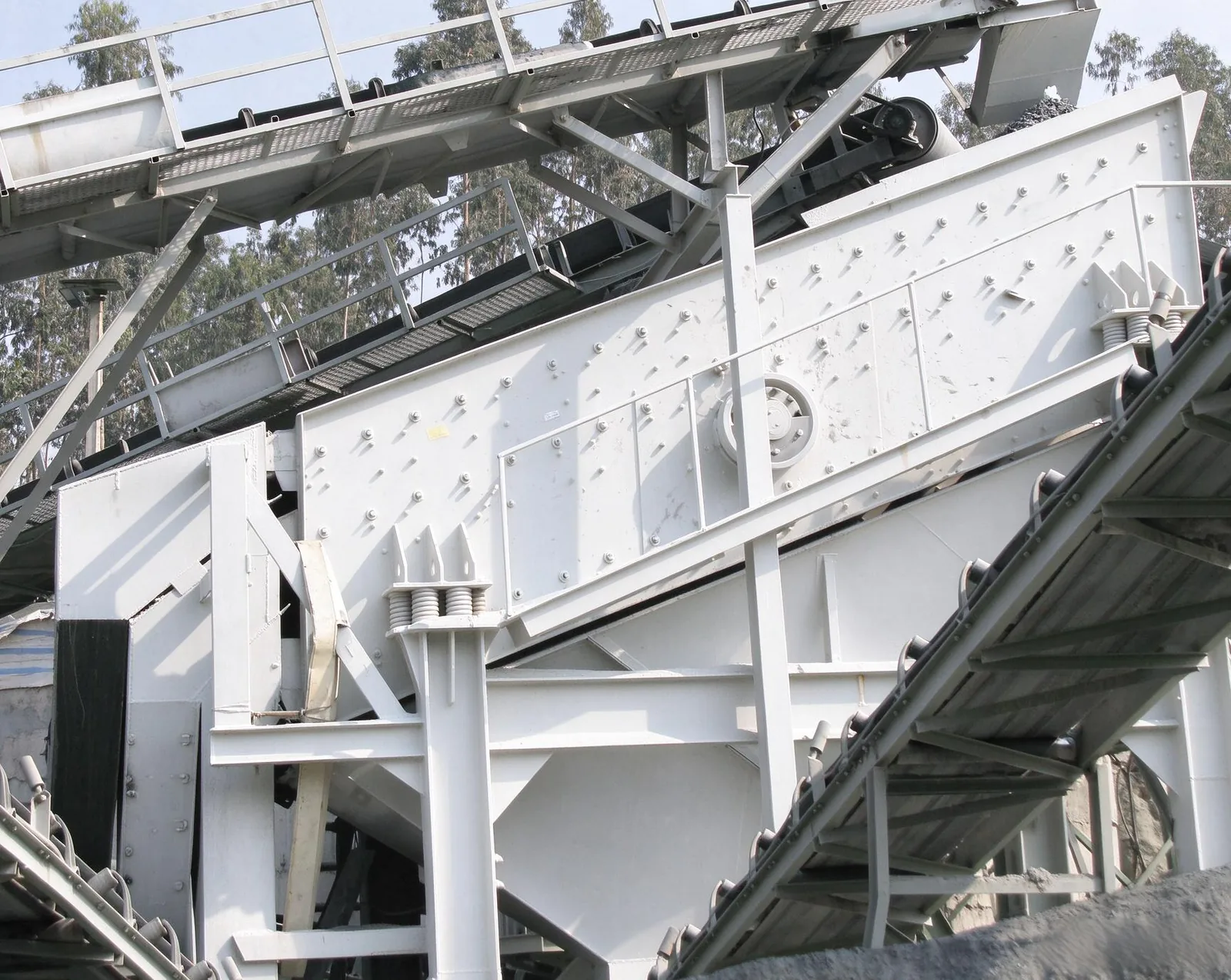

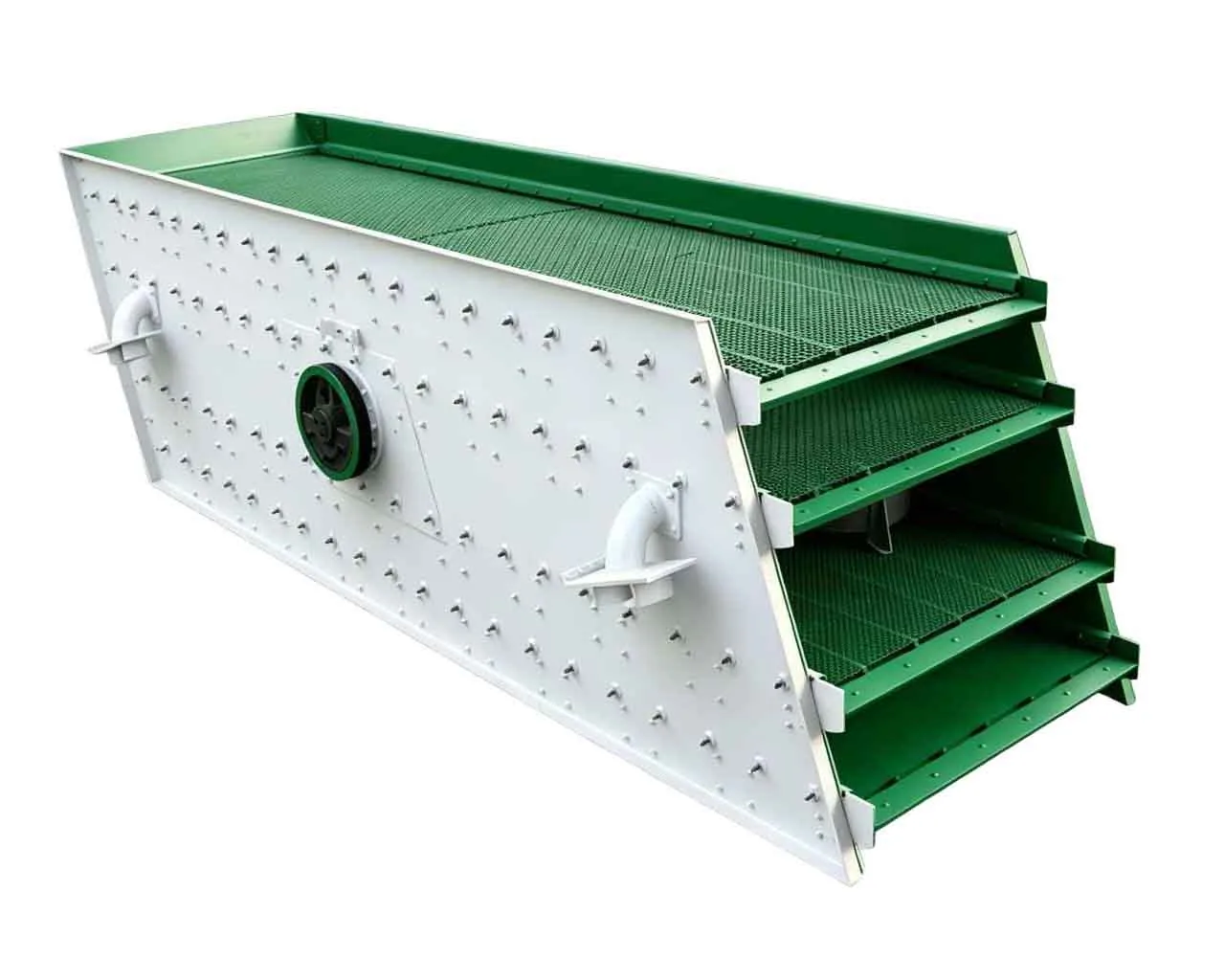

The YA series circular vibrating screen uses a tubular eccentric shaft exciter. When the exciter rotates, it produces a circular motion trajectory that throws material up on the screen deck and moves it forward, while fine particles pass through the apertures for classification.

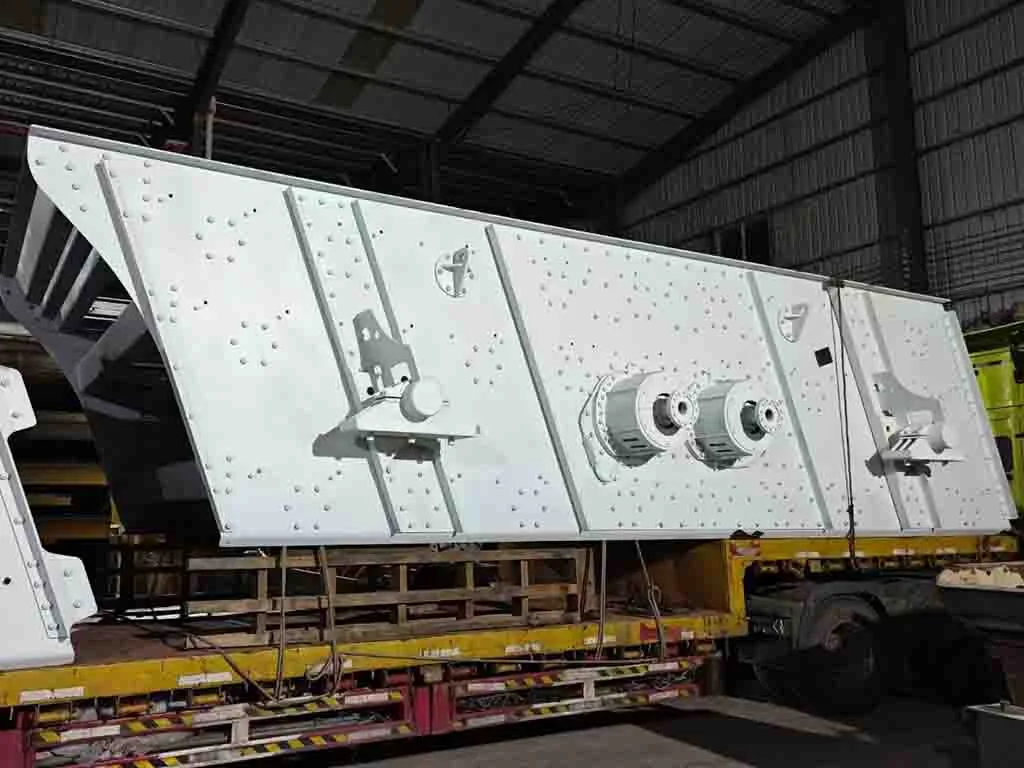

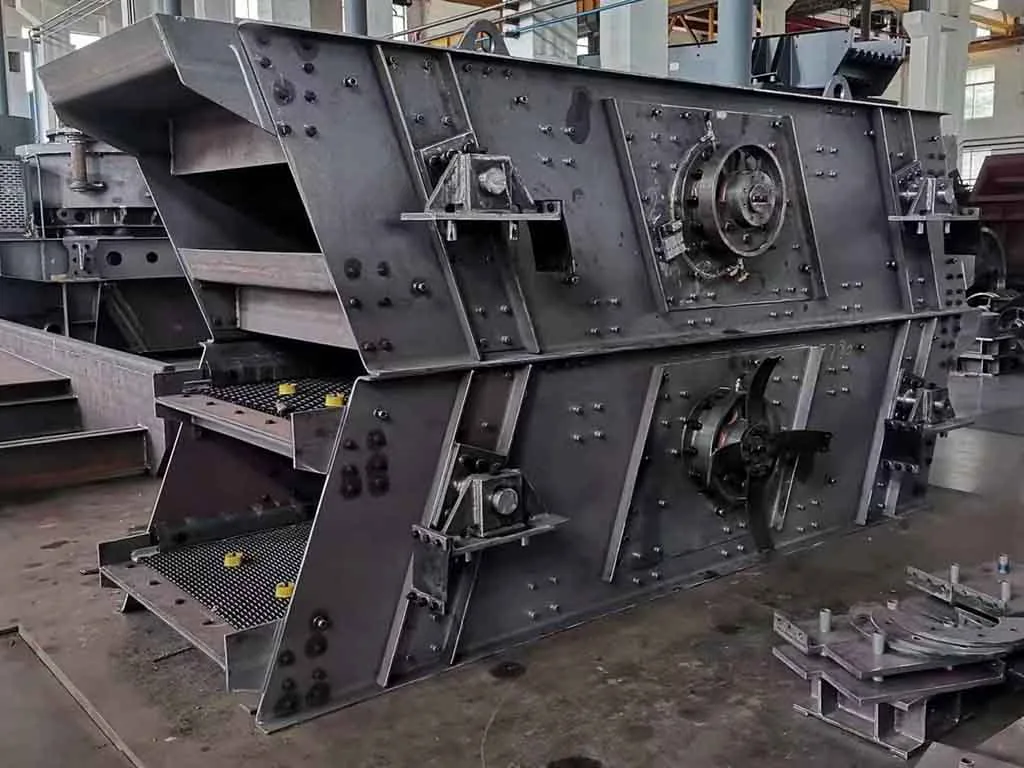

The YK series adopts a block eccentric exciter. When the exciter rotates, it produces a circular motion trajectory that throws material up and moves it forward on the screen deck, while fine particles pass through the apertures for classification. With a robust structure, strong exciting force and high capacity, the screen cloth is reliably tensioned and easy to replace, suitable for large, medium and small aggregate lines.
Large-capacity classification screening of ores
Classification in aggregate production lines
Coal classification and medium draining
Screening of building materials and chemical products
| Model | Layers | Screen Size (mm) | Max Feed Size (mm) | Capacity (t/h) | Frequency (r/min) | Amplitude (mm) | Power (kW) |
|---|---|---|---|---|---|---|---|
| 2YA1237 | 2 | 1200×3700 | 200 | 15-160 | 970 | 5-9 | 5.5 |
| 3YA1237 | 3 | 1200×3700 | 200 | 15-160 | 970 | 5-9 | 7.5 |
| 2YA1548 | 2 | 1500×4800 | 200 | 50-250 | 970 | 5-9 | 15 |
| 3YA1548 | 3 | 1500×4800 | 200 | 50-250 | 970 | 5-9 | 15 |
| 2YA1848 | 2 | 1800×4800 | 200 | 56-330 | 970 | 5-9 | 18.5 |
| 3YA1848 | 3 | 1800×4800 | 200 | 56-330 | 970 | 5-9 | 18.5 |
| 4YA1848 | 4 | 1800×4800 | 200 | 56-330 | 970 | 5-9 | 18.5 |
| 2YA1860 | 2 | 1800×6000 | 200 | 80-450 | 970 | 5-9 | 22 |
| 3YA1860 | 3 | 1800×6000 | 200 | 80-450 | 970 | 5-9 | 22 |
| 4YA1860 | 4 | 1800×6000 | 200 | 80-450 | 970 | 5-9 | 30 |
| 2YA2160 | 2 | 2100×6000 | 200 | 100-720 | 970 | 6-8 | 30 |
| 3YA2160 | 3 | 2100×6000 | 200 | 100-720 | 970 | 6-8 | 30 |
| 4YA2160 | 4 | 2100×6000 | 200 | 100-720 | 970 | 6-8 | 30 |
| 4YA2460 | 4 | 2400×6000 | 200 | 150-600 | 970 | 6-8 | 37 |
| Model | Layers | Screen Size (mm) | Max Feed Size (mm) | Capacity (t/h) | Power (kW) | Weight (t) | Dimension (mm) |
|---|---|---|---|---|---|---|---|
| 2YK1237 | 2 | 3700×1200 | 200 | 10-80 | 11 | 2.40 | 4773×2050×2247 |
| 3YK1237 | 3 | 3700×1200 | 200 | 10-80 | 11 | 3.05 | 4773×2050×2700 |
| 2YK1548 | 2 | 4800×1500 | 400 | 30-200 | 15 | 5.35 | 5900×2270×1620 |
| 3YK1548 | 3 | 4800×1500 | 400 | 30-200 | 15 | 6.07 | 5900×2270×1670 |
| 2YK1848 | 2 | 4800×1800 | 400 | 50-280 | 18.5 | 6.15 | 5900×2560×1620 |
| 3YK1848 | 3 | 4800×1800 | 400 | 50-280 | 18.5 | 6.93 | 5900×2560×1670 |
| 2YK1860 | 2 | 6000×1800 | 400 | 65-550 | 22 | 6.95 | 7060×2560×1620 |
| 3YK1860 | 3 | 6000×1800 | 400 | 65-550 | 22 | 7.70 | 7060×2560×1670 |
| 4YK1860 | 4 | 6000×1800 | 400 | 65-550 | 30 | 8.70 | 7060×2560×1930 |
| 2YK2160 | 2 | 6000×2100 | 400 | 81-720 | 22 | 8.48 | 7130×2990×1760 |
| 3YK2160 | 3 | 6000×2100 | 400 | 81-720 | 30 | 9.24 | 7130×2990×1810 |
| 4YK2160 | 4 | 6000×2100 | 400 | 81-720 | 30 | 10.45 | 7130×2990×1930 |
| 2YK2460 | 2 | 6000×2400 | 400 | 100-810 | 30 | 12.35 | 7130×4121×1810 |
| 3YK2460 | 3 | 6000×2400 | 400 | 100-810 | 37 | 13.85 | 7130×4121×1940 |
| 4YK2460 | 4 | 6000×2400 | 400 | 100-810 | 37 | 15.60 | 7130×4121×2080 |
Note: Parameters are for reference only. Customized models available according to actual needs.
Reinforced screen box and heavy-duty exciter ensure stable operation under high load and long-term continuous working conditions.
Circular motion trajectory and long screening stroke, high screening accuracy, and large processing capacity.
The screen mesh is easy to replace, and the whole machine is simple to maintain, reducing downtime.
Suitable for screening various materials in mining, aggregate, metallurgy, coal, and building materials industries.
Large screen area, multi-layer design, processing capacity up to 810 t/h, suitable for large-scale production.
The screen box is connected with rubber springs, which effectively reduces the impact noise during operation.
The YA series is a classic circular screen with a tubular eccentric shaft exciter, robust structure and strong exciting force, suitable for large materials and heavy-duty screening; the YK series is a new high-efficiency type with a block eccentric exciter, larger capacity, lower noise and easier maintenance.
Yes. Its robust structure and strong exciting force handle the impact of large materials and heavy-duty operations.
The circular motion fully throws the material with high screen-passing rate, providing stable and reliable screening efficiency.
Simple structure with easily replaceable wear parts and low maintenance cost.
The screen cloth is reliably tensioned and easy to replace, allowing quick changes of aperture size for different materials and particle requirements.
Yes. Models and screen specifications can be customized according to capacity and screening requirements.
