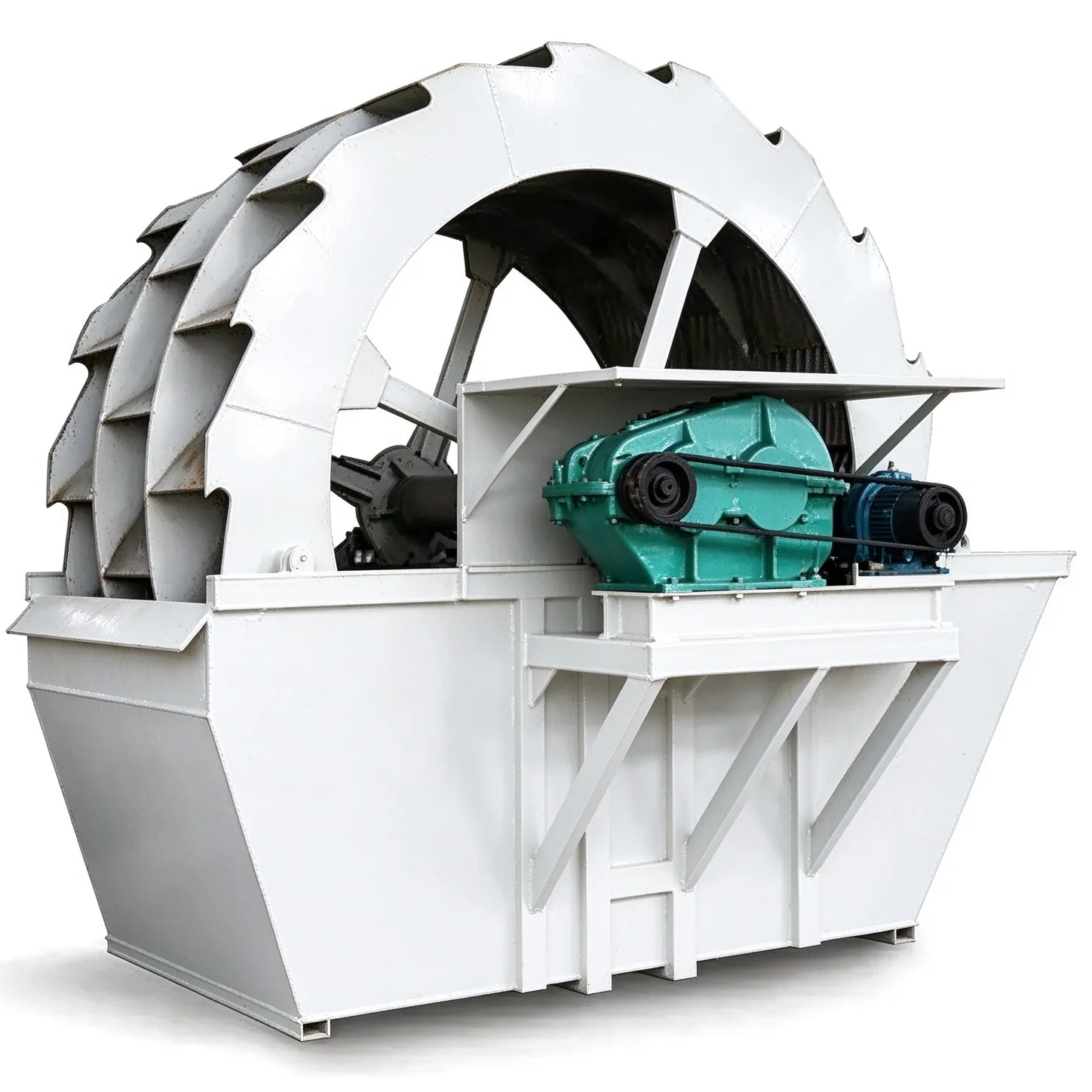

XSD series wheel sand washer is a high-efficiency sand washing equipment supplied by our company, combining advanced technology at home and abroad. It is specially designed to work with sand making machines, featuring large processing capacity, low power consumption, and minimal sand loss.
The transmission part of the equipment is isolated from water and sand, greatly reducing the failure rate. It has three functions: washing, dewatering, and classification, and is widely used in sand and gravel plants, mining, building materials, transportation, chemical industry, water conservancy and hydropower, and concrete mixing stations.
XSD series covers models from XSD2610 to XSD3620, with processing capacity of 20-150 t/h, suitable for various production requirements.
The XSD wheel sand washer uses an impeller structure: the motor drives the impeller to rotate in the water tank, making sand tumble and rub under the impeller, while clay and impurities are washed off and separated by water. The cleaned sand is lifted and discharged with the impeller.
With a compact structure, water-isolated transmission, low water consumption and low fine sand loss, it is the ideal washing equipment for small and medium aggregate lines.
Cleaning and desliming in manufactured sand lines
Sand washing in small and medium aggregate lines
Washing of construction and concrete sand
Washing of glass and chemical raw materials
| Model | Impeller Size (mm) | Speed (r/min) | Capacity (t/h) | Feed Size (mm) | Water Consumption (t/h) | Power (kW) |
|---|---|---|---|---|---|---|
| XSD2610 | Φ2600×1000 | 1.178 | 20-50 | ≤10 | 20-60 | 5.5 |
| XSD2816 | Φ2800×1600 | 1.177 | 30-60 | ≤10 | 50-100 | 11 |
| XSD3016 | Φ3000×1600 | 1.179 | 50-120 | ≤10 | 70-120 | 15 |
| XSD3620 | Φ3600×2000 | 1.180 | 80-150 | ≤10 | 80-140 | 18.5 |
Note: Parameters are for reference only. Customized models available according to actual needs.
Special impeller structure and water flow design ensure high cleaning efficiency, producing sand with high cleanliness.
Optimized tank design and impeller speed control minimize sand loss during the washing process.
Reasonable structure design reduces power consumption by 15-30% compared with traditional sand washers.
The bearing device of the impeller drive is isolated from water and sand, greatly reducing the failure rate.
Compact structure, water-isolated transmission, low water consumption, low fine sand loss and stable operation.
The wheel type is compact with low water consumption, suitable for small and medium lines and moderately clayey materials; the spiral type offers larger capacity and higher cleaning degree for high-clay materials.
Water consumption is low with little fine sand loss, making efficient use of water resources.
Simple structure with water-isolated transmission, low failure rate and easy maintenance.
