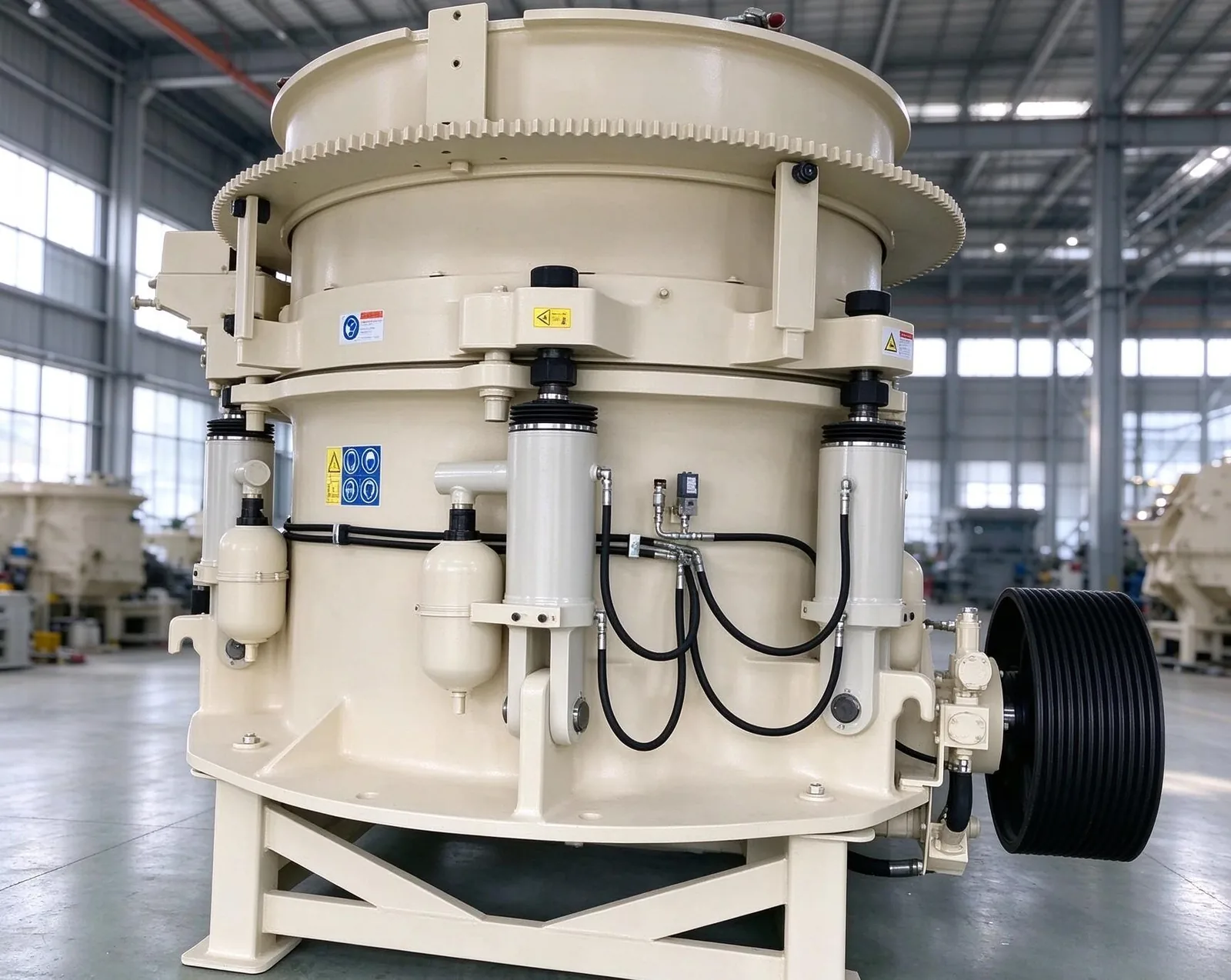

HHP series hydraulic cone crusher is a high-performance crushing equipment supplied by our company, featuring international advanced technology, integrating mechanical, electrical and hydraulic technology, suitable for medium, fine and super fine crushing of ores and rocks.
The equipment adopts hydraulic adjustment, hydraulic cleaning and intelligent control technology, with high crushing efficiency, stable operation and high automation, widely used in mining, building materials, metallurgy, water conservancy, sand and gravel yards and other industries.
HHP series provides five cavity types: C1 extra coarse, C2 coarse, M medium, F1 fine, F2 extra fine, which can be flexibly selected according to the process, with excellent discharge shape and stable output, making it an ideal choice for high-end crushing production lines.

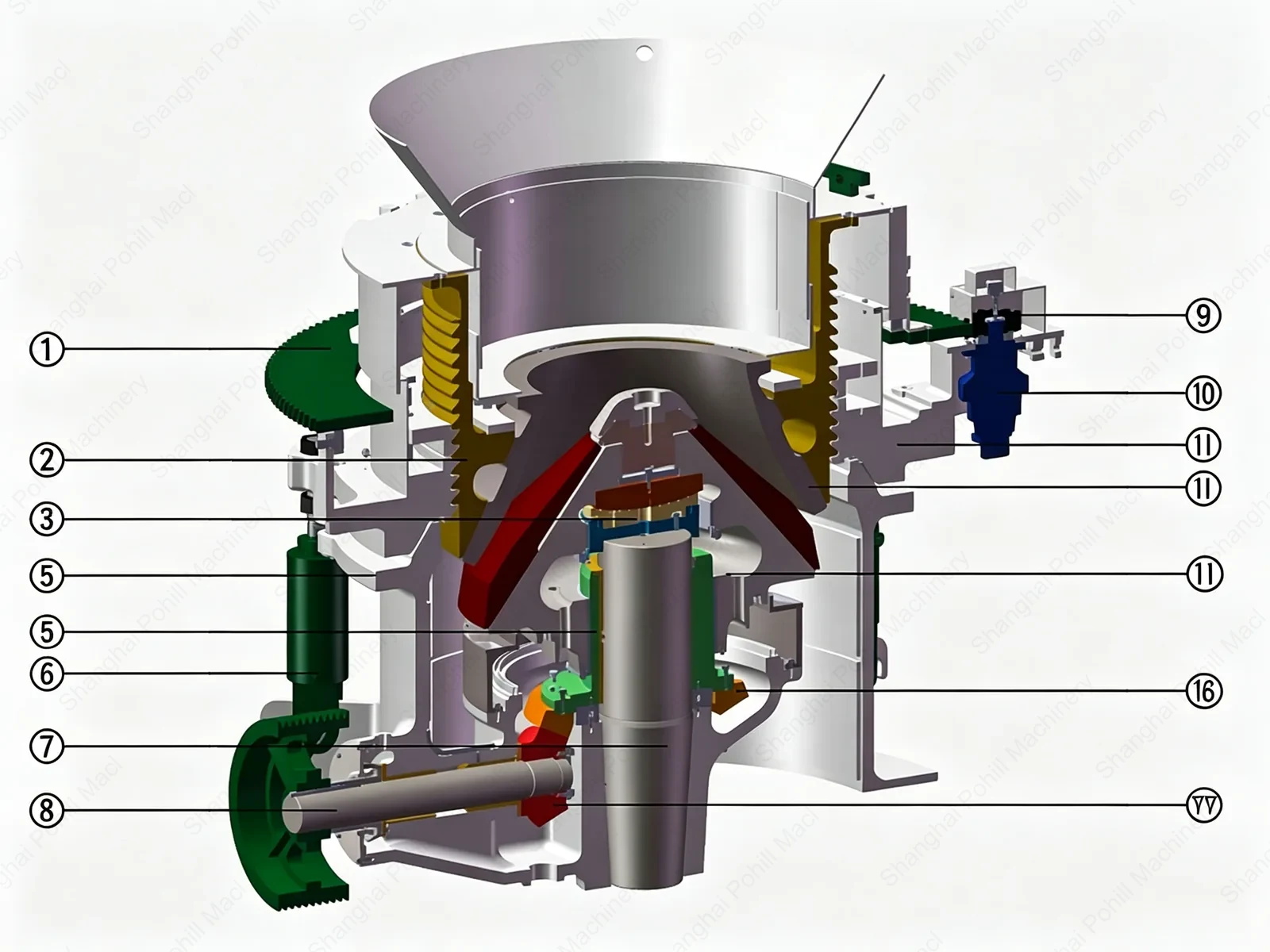

1. Feed Distributor 2. Concave Liner 3. Mantle 4. Bowl Liner 5. Main Shaft 6. Eccentric Bushing 7. Hydraulic Locking Cylinder 8. Seal Ring 9. Accumulator 10. Frame
Material is fed into the crushing chamber from the top. Driven by the hydraulic and mechanical system, the mantle swings, and material is compressed in multiple layers between the mantle and the concave to achieve laminated crushing with good product shape and low flake content.
Integrating mechanical, electrical and hydraulic technologies, it features hydraulic adjustment, hydraulic chamber clearing and intelligent control for high crushing efficiency, stable operation and high automation.
Secondary crushing of ores and rocks
Fine crushing and sand shaping in aggregate plants
Fine and ultra-fine crushing of metal ores
Material crushing in hydropower, metallurgy and other industries
* Contact sales for more model images
| Model | Cavity | Open Side Feed(mm) | Close Side Feed(mm) | Min. Discharge(mm) | Motor Power(kW) |
|---|---|---|---|---|---|
| HHP200 | C2 (Coarse) | 235 | 190 | 19 | 160 |
| M (Medium) | 171 | 120 | 16 | ||
| F1 (Fine) | 150 | 95 | 13 | ||
| F2 (Extra Fine) | 116 | 70 | 8 | ||
| HHP300 | C1 (Extra Coarse) | 265 | 230 | 25 | 220 |
| C2 (Coarse) | 240 | 210 | 20 | ||
| M (Medium) | 190 | 150 | 15 | ||
| F1 (Fine) | 145 | 105 | 11 | ||
| F2 (Extra Fine) | 120 | 80 | 8 | ||
| HHP400 | C1 (Extra Coarse) | 360 | 290 | 30 | 315 |
| C2 (Coarse) | 310 | 250 | 25 | ||
| M (Medium) | 260 | 196 | 20 | ||
| F1 (Fine) | 182 | 110 | 13 | ||
| F2 (Extra Fine) | 135 | 90 | 10 | ||
| HHP500 | C1 (Extra Coarse) | 370 | 330 | 38 | 400 |
| C2 (Coarse) | 320 | 290 | 28 | ||
| M (Medium) | 245 | 210 | 22 | ||
| F1 (Fine) | 180 | 130 | 13 | ||
| F2 (Extra Fine) | 150 | 95 | 10 | ||
| HHP800 | C1 (Extra Coarse) | 450 | 352 | 38 | 630 |
| C2 (Coarse) | 373 | 298 | 32 | ||
| M (Medium) | 340 | 275 | 25 | ||
| F1 (Fine) | 280 | 230 | 16 | ||
| F2 (Extra Fine) | 235 | 150 | 10 |
Technical parameters are for reference only, subject to change without notice
C1/C2/M/F1/F2 five cavities available, covering extra coarse to extra fine working conditions, one production line meets multi-stage crushing needs.
Fully automatic hydraulic cavity cleaning and overload protection, automatic discharge of unbreakable materials, avoiding equipment damage and greatly reducing downtime.
Low needle flake content, high cube particle ratio, fully meeting high-standard construction aggregate and manufactured sand production requirements.
PLC intelligent control system with touch screen, automatic adjustment of discharge opening, oil temperature and pressure, one person can remotely monitor.
Mantle and concave adopt high-chromium manganese copper alloy, uniform wear, service life more than 50% higher than ordinary parts.
Can crush granite, basalt, limestone, river pebble, iron ore, gold ore and other high-hardness materials.
The HHP integrates mechanical, electrical and hydraulic technologies with hydraulic chamber clearing and intelligent control, offering higher automation for demanding large production lines.
When the machine stops, the hydraulic system quickly clears material from the crushing chamber without manual cleaning, greatly reducing downtime.
Multiple cavity types covering coarse, medium and fine crushing are available with high process flexibility.
Widely used in mining, building materials, metallurgy, hydropower and aggregate plants for secondary and fine crushing.
