Product Overview

The Single Cylinder Hydraulic Cone Crusher is a high-efficiency secondary and tertiary crushing equipment supplied by our company, mainly used for secondary and fine crushing of ores, rocks and other materials. It is widely used in mining, building materials, highways, railways, water conservancy and other industries.

The equipment adopts laminated crushing principle, with large crushing ratio, high output and stable operation. It is the core equipment in sand production line and can meet the secondary and fine crushing needs of different scale production lines.

This machine features compact structure, simple operation and maintenance, and long service life of wearing parts, greatly reducing user costs and making it the preferred secondary and fine crushing equipment in the industry.

Introduction Working Principle Gallery Technical Data Advantages FAQ

Working Principle

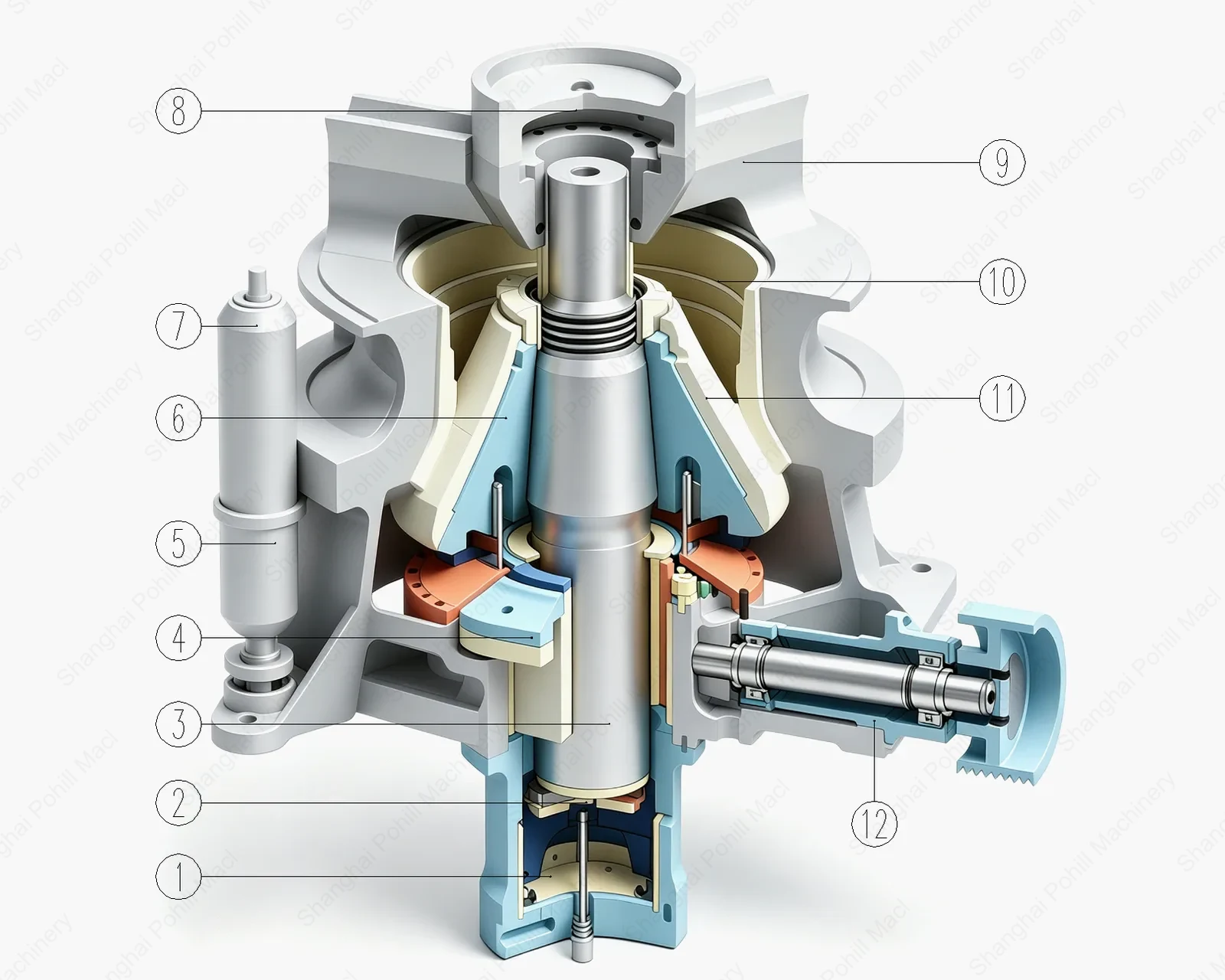

Single-Cylinder Hydraulic Cone Crusher Cross-Section Diagram

Main Components

1. Hydraulic Cylinder 2. Thrust Bearing Assembly 3. Main Shaft 4. Eccentric Assembly 5. Lower Frame 6. Mantle Assembly 7. Accumulator 8. Top Bearing 9. Upper Frame 10. Concave Liner 11. Mantle 12. Drive Assembly

Material enters the crushing chamber through the feed opening. Driven by the hydraulic system, the main shaft makes the mantle swing, and material is compressed and ground between the mantle and the concave to achieve laminated crushing with good product shape.

Equipped with hydraulic protection and hydraulic adjustment: when tramp iron enters, the hydraulic system releases automatically and resets after the material passes; the discharge opening can be adjusted online with high automation.

Applications

Secondary Crushing

Secondary crushing of hard rocks such as granite and basalt

Fine Crushing

Fine crushing and sand shaping in aggregate lines

Metal Ore Crushing

Secondary and fine crushing of iron ore, copper ore and other metal ores

Hydropower & Infrastructure

Aggregate processing for hydropower, highway and other large projects

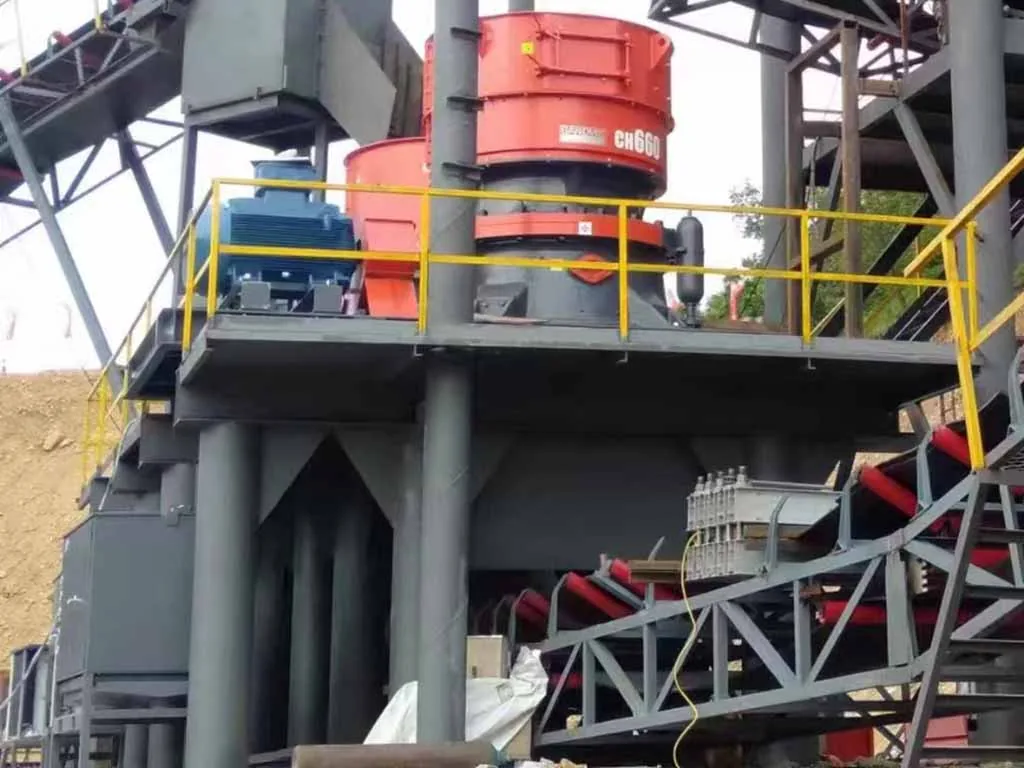

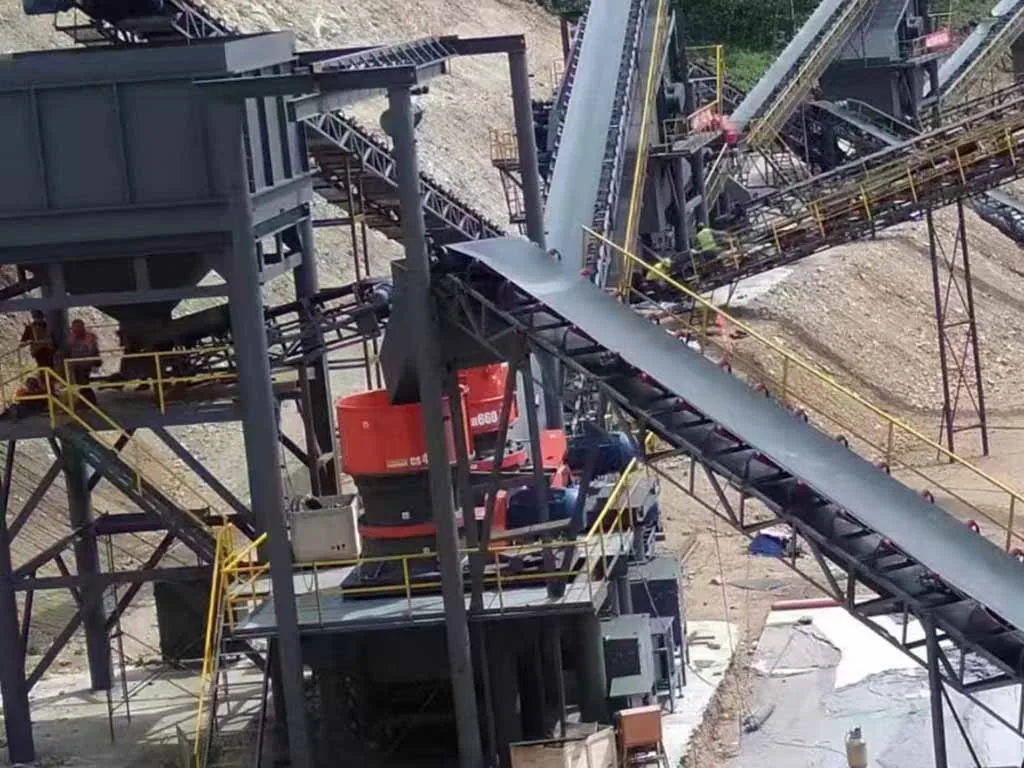

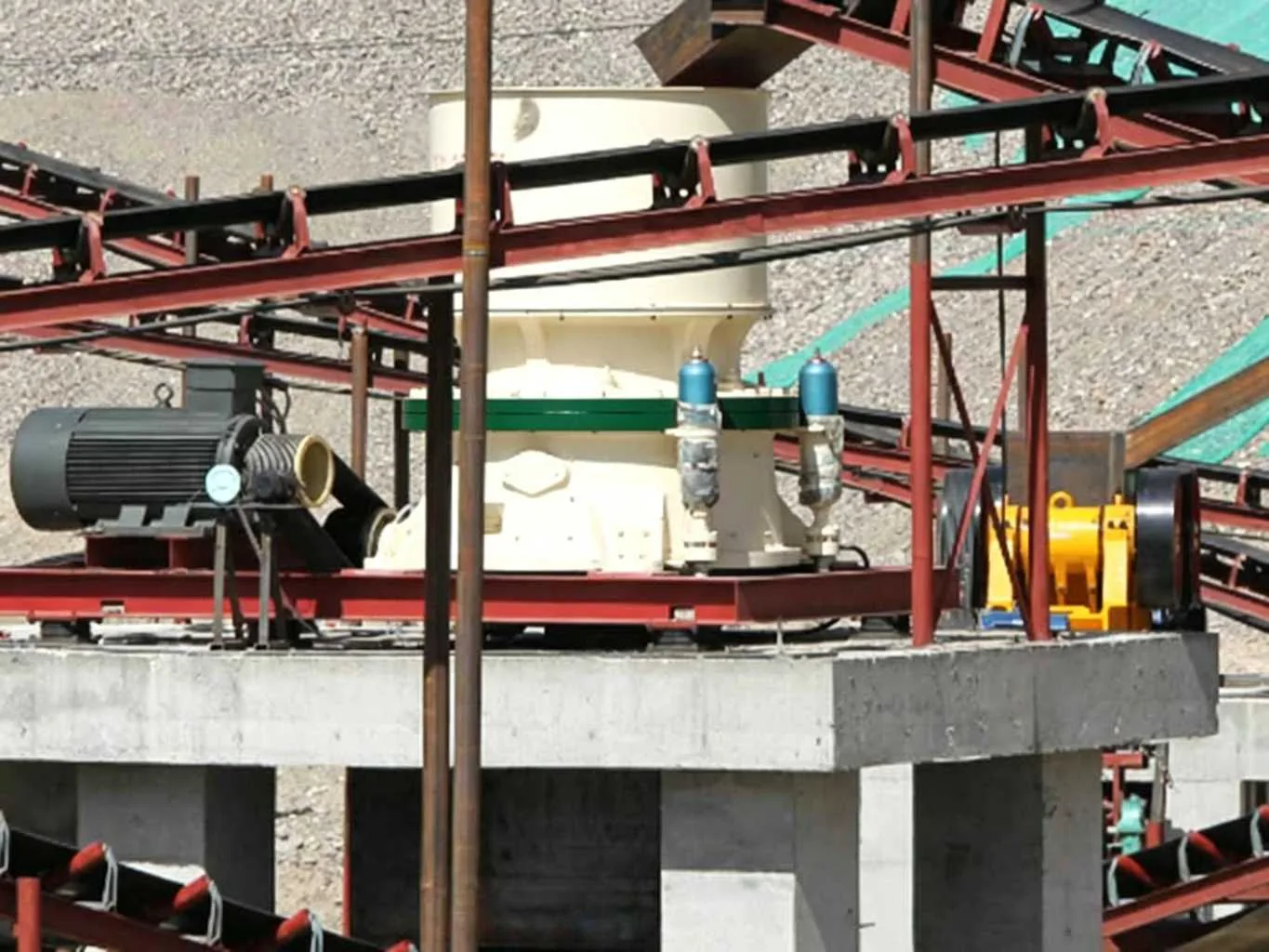

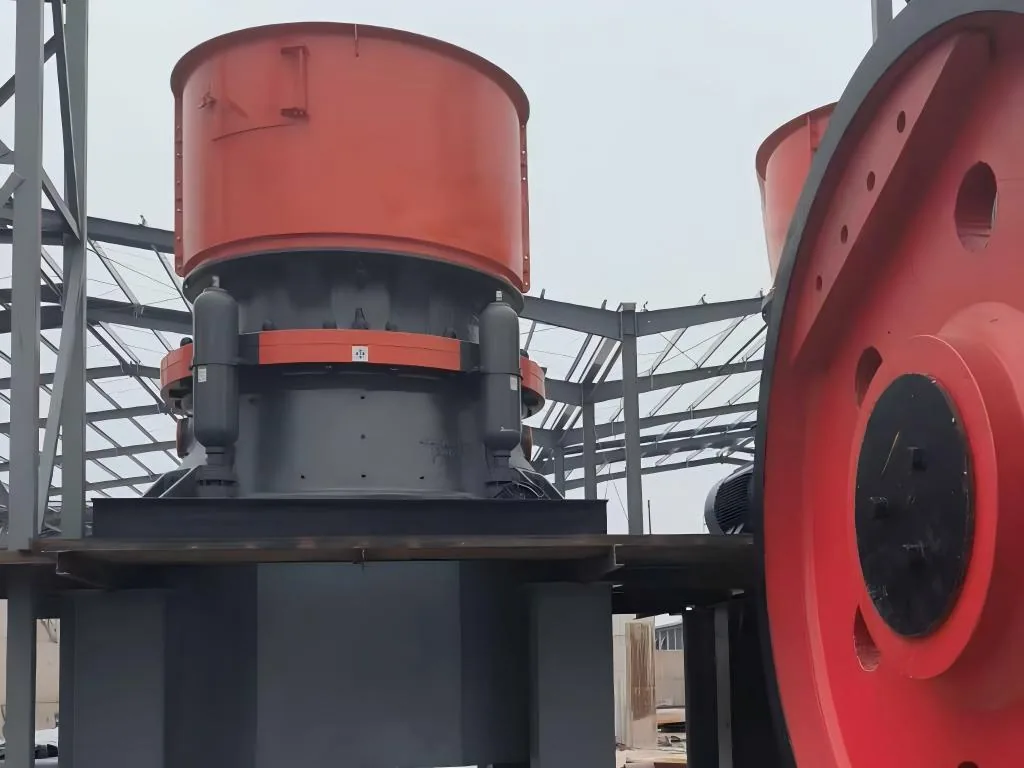

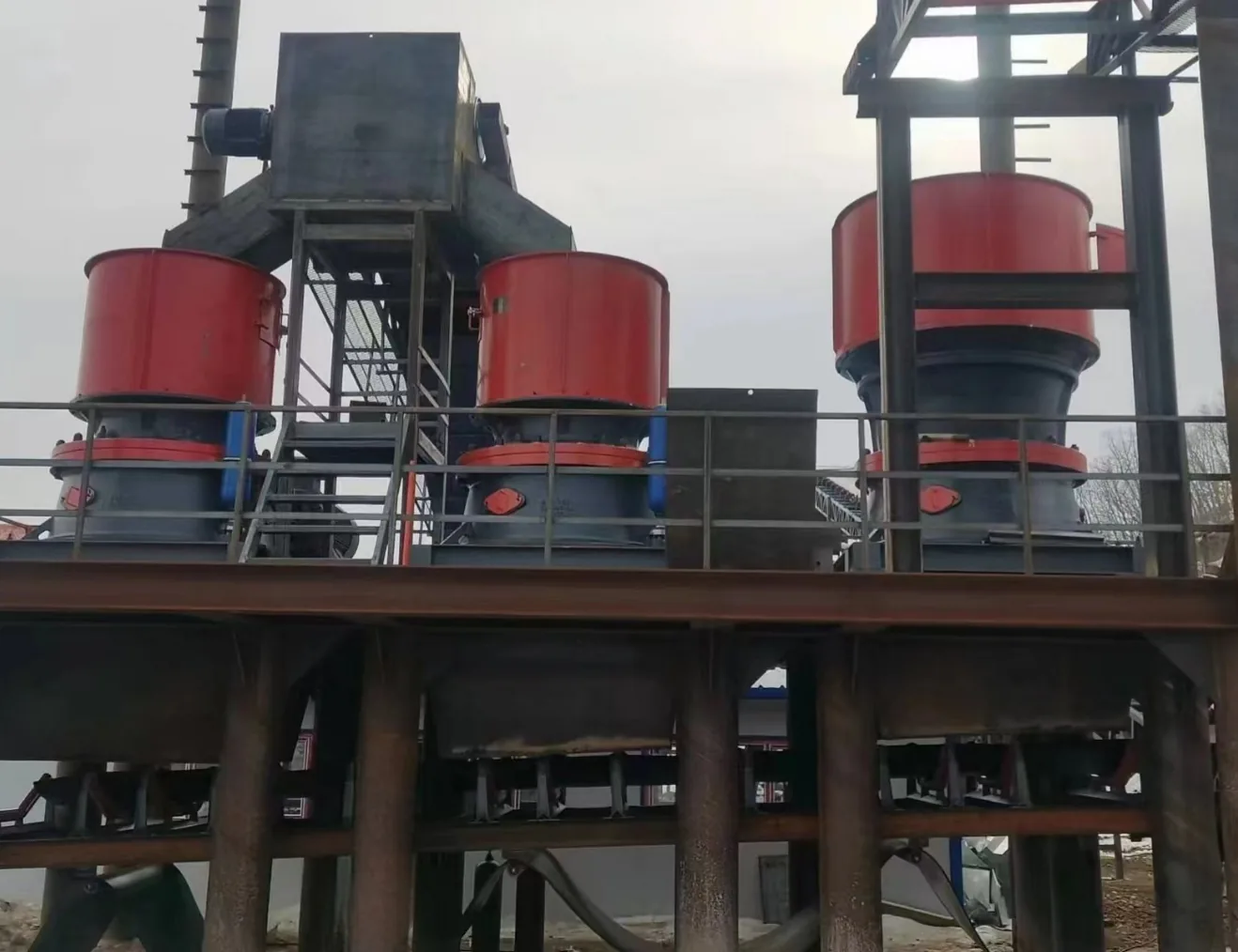

Product Gallery

* Contact sales for more model images

Technical Parameters

Model	HS100	HH100	HS430	HH430	HS440	HH440	HS660	HH660	HS780	HH870
Weight(kg)	7350	5700	12000	9200	19300	14300	35700	26800	53865	49800
Max Inspection Weight(kg)	2800	2000	5200	3000	8200	4800	16800	8600	21264.1	13200
Motor Power(kW)	90	90	132	132	220	220	315	315	400	500

Model	Cavity	Max Feeding Size(mm)	Capacity(t/h)
Model	Cavity	Max Feeding Size(mm)	19mm	22mm	25mm	29mm	32mm	35mm	38mm	41mm	44mm	48mm	51mm	54mm	60mm	64mm	70mm	76mm
HS430	Extra Coarse	360			126	138-173	147-230	156-293	165-310	174-327	183-344	196-306	205-256
	Coarse	300		108	116-145	127-199	135-254	144-270	152-285	161-301	196-264	108
	Medium Coarse	235	91	98-123	106-166	116-218	124-232	131-246	139-261	147-275	154-241	165
HS440	Extra Coarse	450						267	282-353	298-446	313-563	334-601	350-524	365-456
	Coarse	400				225	239-299	254-381	269-484	284-511	298-448	318-398	333
	Medium Coarse	300			195	214-267	228-342	242-435	256-461	270-486	284-426	303-378	317
HS660	Extra Coarse	560								349	368-460	392-588	410-718	428-856	465-529	489-978	525-1050	562-983
HS660	Coarse	500							318	336-420	353-618	376-753	394-788	411-823	446-892	469-822	504-631

Model	Cavity	Max Feeding Size(mm)	Capacity(t/h)
Model	Cavity	Max Feeding Size(mm)	60mm	64mm	70mm	76mm	83mm	90mm	96mm	100mm	110mm	120mm
HS780	Extra Coarse	680	436	460-658	500-840	512-1025	612-1223	663-1327	700-1398	750-1500	800-1400	850

Model	Cavity	Max Feeding Size(mm)	Capacity(t/h)
Model	Cavity	Max Feeding Size(mm)	20mm	25mm	30mm	35mm	40mm	45mm
HS100	Medium	170	85-90	105-145	125-175	145-200	165-215

Model	Cavity	Max Feeding Size(mm)	Capacity(t/h)
Model	Cavity	Max Feeding Size(mm)	6mm	8mm	10mm	13mm	16mm	19mm	22mm	25mm	32mm	38mm	44mm	51mm	57mm	64mm	71mm
HH100	Medium	105			55-60	60-85	65-95	70-100	75-90
	Medium fine	85		45-50	50-70	55-80	60-85	65-90	65-80
	Extra fine	32	40-55	40-60	45-70	55-75	60-75	65
HH430	Extra Coarse	185				69-108	75-150	80-161	86-171	91-182	104-208	115-208
	Coarse	145				66-131	71-142	76-152	81-162	86-173	98-197	109-150
	Medium Coarse	115			57	62-140	67-151	72-162	77-173	82-184	93-145
	Medium	90			64-84	69-131	75-142	80-152	86-162	91-154	104
	Medium fine	75		61	65-106	70-115	76-124	81-126	87-114	92
	Fine	50	48-78	51-83	54-88	59-96	63-103	68-105	72-95	77
	Extra fine	35	70-90
HH440	Extra Coarse	215					114-200	122-276	131-294	139-313	159-357	175-395	192-384
	Coarse	175				101	109-218	117-292	125-312	133-332	151-378	167-335	183-229
	Medium Coarse	140				97-122	105-262	113-282	120-301	128-320	146-328	161-242
	Medium	110				117-187	126-278	136-298	145-318	154-339	175-281	194
	Medium fine	85			114	124-227	134-245	144-263	153-281	163-299	186-248
	Fine	70		90-135	96-176	104-191	112-206	120-221	129-236	137-251	156-208
	Extra fine	38	100-125

Model	Cavity	Max Feeding Size(mm)	Capacity(t/h)
Model	Cavity	Max Feeding Size(mm)	6mm	8mm	10mm	13mm	16mm	19mm	22mm	25mm	32mm	38mm	44mm	51mm	57mm	64mm	71mm
HH660	Extra Coarse	270					177	190-338	203-436	216-464	246-547	272-605	298-662	328-511
	CX Extra Coarse	235					174-194	187-374	200-488	212-519	242-592	268-654	293-521	323-359
	Coarse	215					171-190	184-367	196-480	209-510	238-582	263-643	288-512	317-353
	Medium Coarse	175					162-253	174-426	186-455	198-484	226-552	249-499	273-364
	Medium	135					197-295	211-440	226-470	240-500	274-502	302-403
	Medium fine	115				192	207-369	222-396	237-423	252-450	287-451	318-363
	Fine	90				195-304	210-328	225-352	241-376	256-400	292-401	323
	Extra fine	65				211-293	227-316	244-298	261-290
HH870	Extra Coarse	300							448-588	477-849	544-968	601-1070	658-1172	725-1291	782-1393	849-1512	906-1331
	Coarse	240						406	433-636	461-893	525-1018	581-1125	636-1232	700-1357	756-1464	820-1461	876-1286
	Medium Coarse	195						380-440	406-723	432-837	492-954	544-1055	596-1155	657-1272	708-1373	769-1370	821-1206
	Medium	155						400-563	428-786	455-836	519-953	573-1054	628-1154	692-1271	746-1372	810-1248	865-1098
	Medium fine	100					379-424	407-716	434-765	462-814	527-928	852-942	638-789	702
	Fine	90				357-395	385-656	414-704	442-752	470-800	535-912	592-857	649-718
	Extra fine	80			280-405	304-517	328-558	352-598	376-639	400-680	455-775	503-758	551-669

Technical parameters are for reference only, subject to change without notice

Key Advantages

Laminated Crushing & Excellent Shape

Adopts laminated crushing principle with uniform discharge particle shape and low needle flake content, meeting high-standard sand and stone requirements.

Multi-Cavity Adaptation

Extra coarse, coarse, medium coarse, medium, medium fine, fine and extra fine cavities are available to meet different crushing needs.

Hydraulic Protection & Reliable

Hydraulic cavity cleaning and iron passing protection function, effectively protect equipment from foreign matter damage, safer operation.

Long Wear Parts Life

Mantle and concave adopt high-performance wear-resistant materials with long service life, reducing replacement cost.

High Automation

Automatic lubrication and discharge opening adjustment, simple operation, reduce manual intervention, high production efficiency.

Wide Application

Can crush various medium and high hardness ores and rocks such as granite, basalt, limestone, iron ore, etc.

FAQ

What are the advantages of the hydraulic system?

Hydraulic protection responds quickly and resets automatically after tramp iron passes; hydraulic adjustment allows online setting of the discharge opening with simple operation and short downtime.

What cavity types are available?

Multiple cavity types covering coarse, medium and fine crushing are available, selectable flexibly by process.

What is the level of automation?

An intelligent control system monitors operating status and adjusts parameters automatically, reducing manual intervention.

Which materials and scenarios is it suitable for?

It suits secondary and fine crushing of ores and rocks, widely used in mining, building materials, highway and hydropower aggregate lines.
