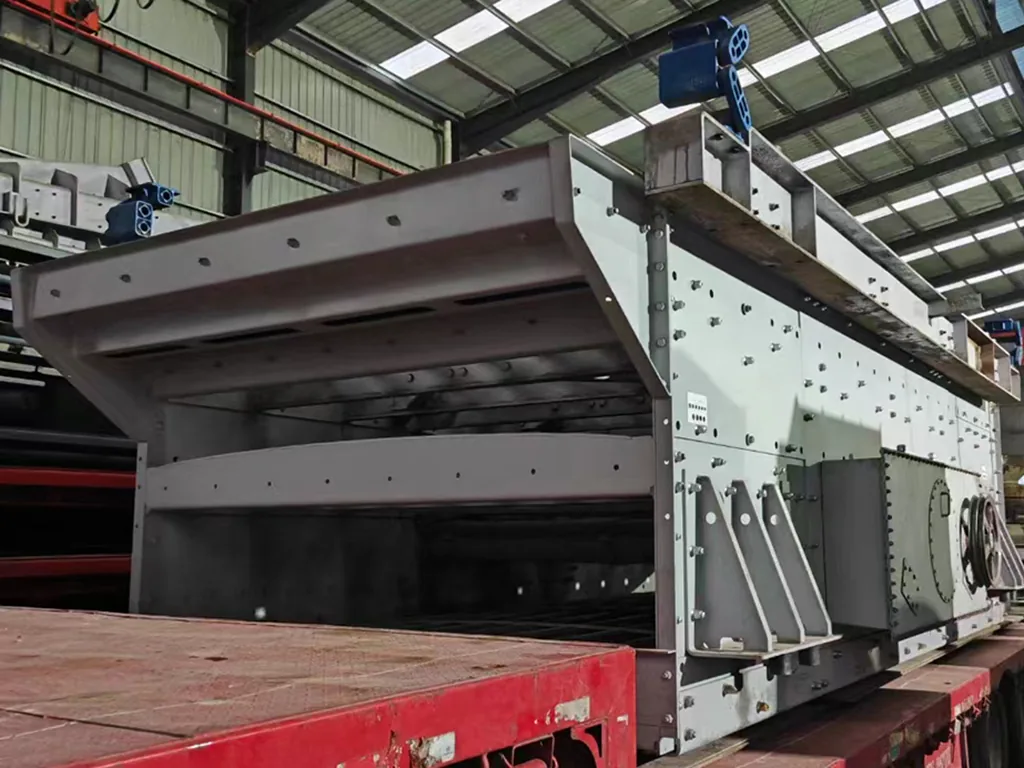

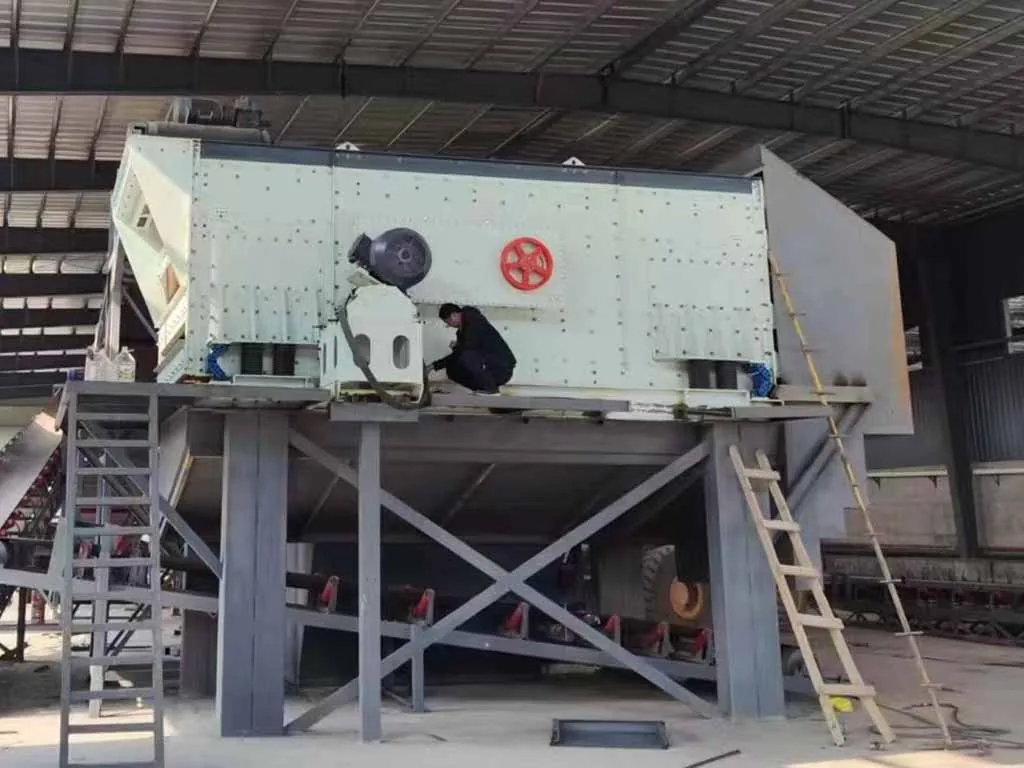

TK series three-axis elliptical vibrating screen is a high-efficiency screening equipment that combines the advantages of both circular and linear vibrating screens. It adopts a three-axis block eccentric exciter, producing an elliptical motion trajectory that ensures high screening efficiency and large processing capacity.
The elliptical motion prevents screen hole blockage while maintaining strong material conveying capability with a small or zero screen deck inclination. It is widely used in quarry, mining, metallurgy, coal, building materials, electric power, and chemical industries for material classification, dewatering, and medium removal.
TK series covers models from 2TK1548 to 4TK2460, with processing capacity up to 1200 m³/h and screening efficiency above 90%.

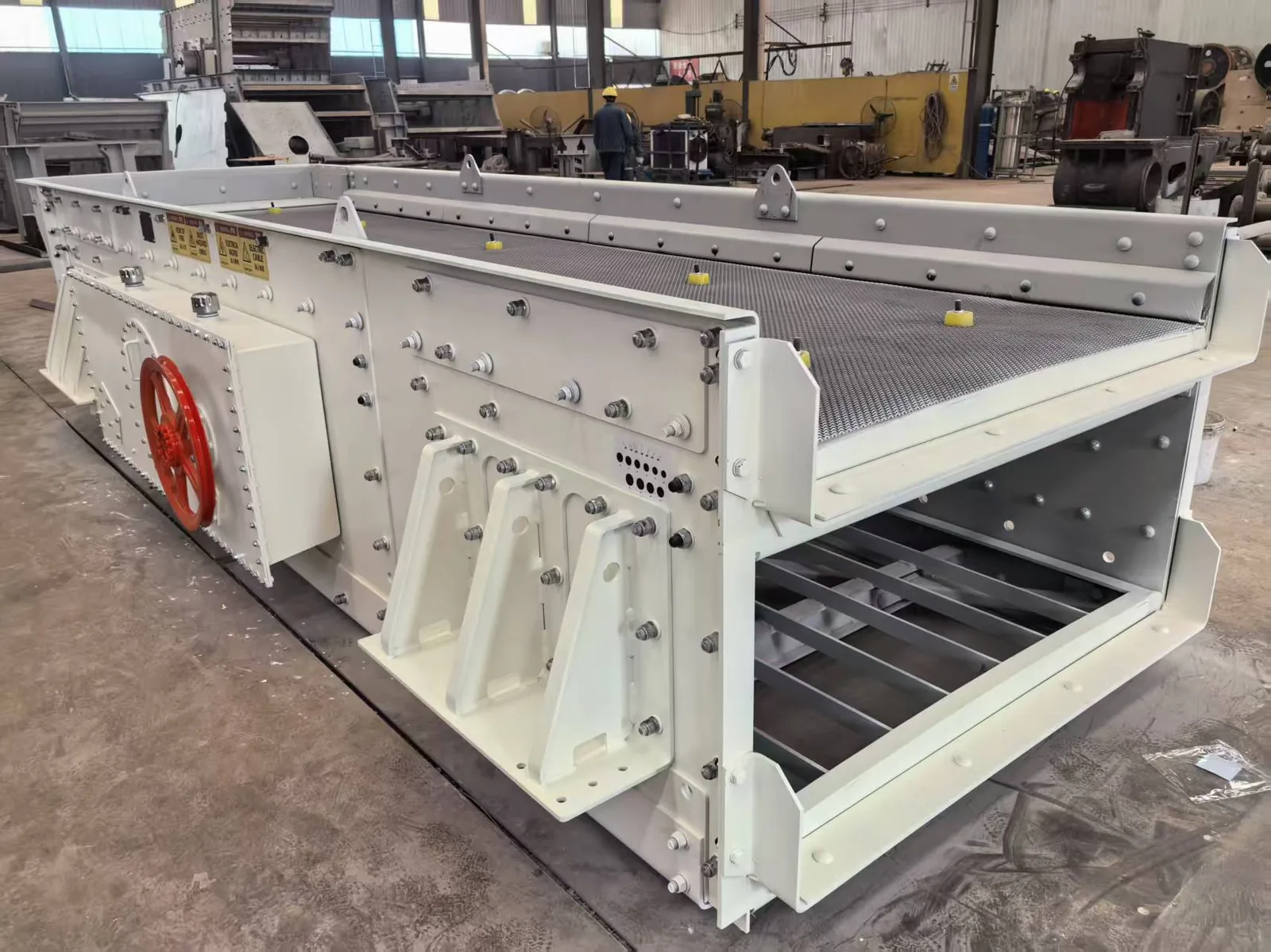

The TK series adopts a three-axis block eccentric exciter: three eccentric shafts with equal mass and equal radius are forced into synchronous rotation by gears, producing a stable elliptical motion trajectory. Material is thrown up and conveyed forward on the screen deck while fine particles pass through the screen apertures for classification.
The elliptical motion combines the non-blocking advantage of circular screens with the strong conveying capability of linear screens. The screen deck can be horizontal or at a small inclination, achieving screening efficiency above 90% with large processing capacity.
Classification and screening in aggregate production lines
Material classification and medium removal in metallurgy and coal industries
Material screening in building materials and chemical industries
Material classification in hydropower and power industries
| Model | Layers | Screen Size (mm) | Mesh Size (mm) | Capacity (m³/h) | Frequency (r/min) | Power (kW) | Weight (t) |
|---|---|---|---|---|---|---|---|
| 2TK1548 | 2 | 1500×4800 | 5-150 | 140-650 | 720-875 | 22 | 6.7 |
| 3TK1548 | 3 | 1500×4800 | 5-150 | 140-650 | 720-875 | 22 | 7.5 |
| 4TK1548 | 4 | 1500×4800 | 5-150 | 140-650 | 720-875 | 30 | 8.3 |
| 2TK1848 | 2 | 1800×4800 | 5-150 | 180-700 | 720-875 | 22 | 7.5 |
| 3TK1848 | 3 | 1800×4800 | 5-150 | 180-700 | 720-875 | 30 | 8.6 |
| 4TK1848 | 4 | 1800×4800 | 5-150 | 180-700 | 720-875 | 30 | 9.7 |
| 2TK1860 | 2 | 1800×6000 | 5-150 | 250-850 | 720-875 | 30 | 8.2 |
| 3TK1860 | 3 | 1800×6000 | 5-150 | 250-850 | 720-875 | 30 | 9.9 |
| 4TK1860 | 4 | 1800×6000 | 5-150 | 250-850 | 720-875 | 37 | 11.6 |
| 2TK2160 | 2 | 2100×6000 | 5-150 | 300-1000 | 720-875 | 37 | 10.5 |
| 3TK2160 | 3 | 2100×6000 | 5-150 | 300-1000 | 720-875 | 37 | 12.4 |
| 4TK2160 | 4 | 2100×6000 | 5-150 | 300-1000 | 720-875 | 45 | 14.3 |
| 2TK2460 | 2 | 2400×6000 | 5-150 | 350-1200 | 720-875 | 37 | 12.5 |
| 3TK2460 | 3 | 2400×6000 | 5-150 | 350-1200 | 720-875 | 45 | 14.7 |
| 4TK2460 | 4 | 2400×6000 | 5-150 | 350-1200 | 720-875 | 45 | 16.9 |
Note: Parameters are for reference only. Customized models available according to actual needs.
Combines the non-blocking advantage of circular motion with the strong conveying capability of linear motion, achieving screening efficiency above 90%.
Three shafts with equal eccentric mass and same radius, forced synchronous rotation via gears, stable and reliable elliptical motion.
Capacity up to 1200 m³/h, horizontal or small inclination screen deck reduces plant height and infrastructure investment.
Side plates and beams connected by high-strength ring-groove rivets, Q345C low-alloy steel ensures durability in cold environments down to -40°C.
The elliptical screen combines the non-blocking advantage of circular screens and the strong conveying of linear screens, allowing a horizontal deck for large-capacity, high-demand screening.
Under normal conditions, screening efficiency can reach above 90%, with capacity up to 1200 m³/h.
15 models from 2TK1548 to 4TK2460 are available to meet different capacity and screening requirements.
Q345C low-alloy steel with high-strength ring-groove riveted connections ensures reliable operation in cold environments down to -40°C.
